Installed A Mugen Grille!
#1
Installed A Mugen Grille!
Hey guys,
My replica mugen grille arrived yesterday through the post, spent most of this evening fitting it and getting it right.
It was a pretty long job and getting it to fit right was a right bi*ch, then again, now it's on it looks great. I went into the task thinking that I'd be able to pretty much do it without removing the bumper.. which quickly changed.. I'm in the UK with a Jazz, so I had no problem with the usual USDM to JDM fittment problems.
I know a couple of other people bought the same item off of ebay, so if you need any advice on getting it on gimme a shout... I'll get some pics up tomorrow when I can get some light.
Any questions on it just ask, I'm gonna try and put a DIY tutorial together using the pics I took this evening, hopefully people won't have to make the massive numbers of mistakes I made!
My replica mugen grille arrived yesterday through the post, spent most of this evening fitting it and getting it right.
It was a pretty long job and getting it to fit right was a right bi*ch, then again, now it's on it looks great. I went into the task thinking that I'd be able to pretty much do it without removing the bumper.. which quickly changed.. I'm in the UK with a Jazz, so I had no problem with the usual USDM to JDM fittment problems.
I know a couple of other people bought the same item off of ebay, so if you need any advice on getting it on gimme a shout... I'll get some pics up tomorrow when I can get some light.
Any questions on it just ask, I'm gonna try and put a DIY tutorial together using the pics I took this evening, hopefully people won't have to make the massive numbers of mistakes I made!
#3
Right, got some pics, had to take them in the dark.. got home late again..
Sorry about the quality, i'll try and get some more tomorrow with a better camera, this'll hopefully give you a basic idea of what it looks like..

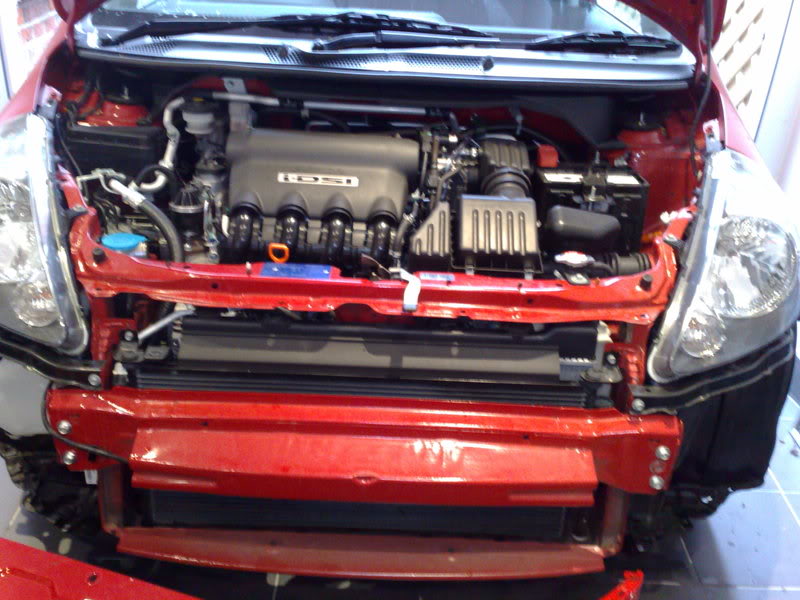

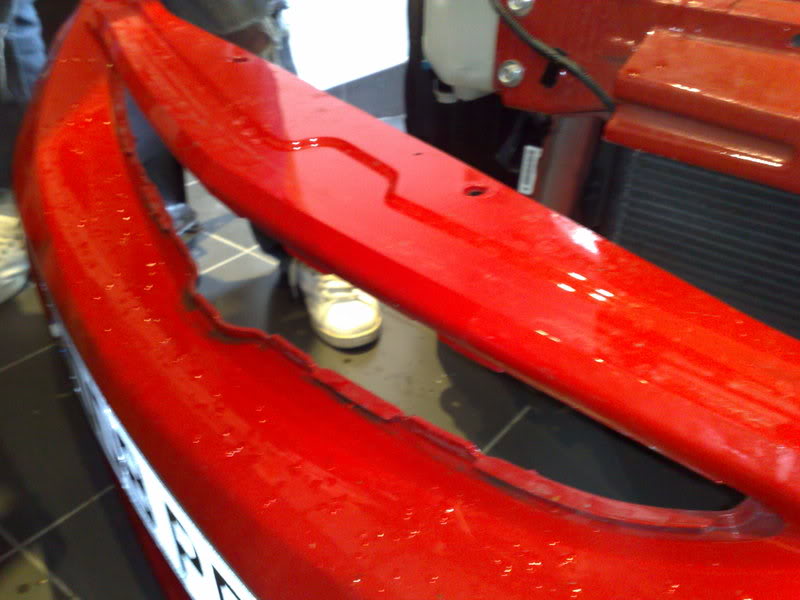

Got the bumper off to start with when fitting, pretty quick to do
Once the bumper was off it was simply a matter of getting the new grille in, problem was the fittings were completely different. In the end it had to be installed using double sided tape and cable ties hidden behind the grille.

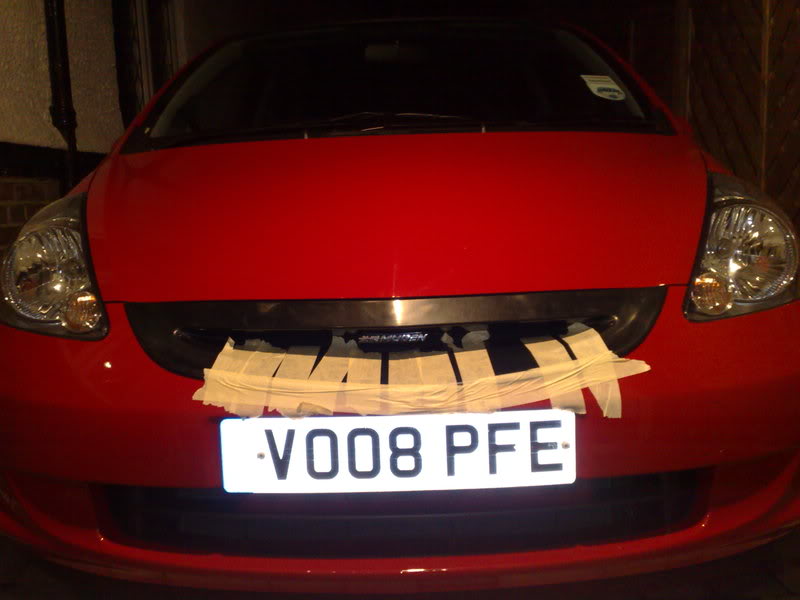

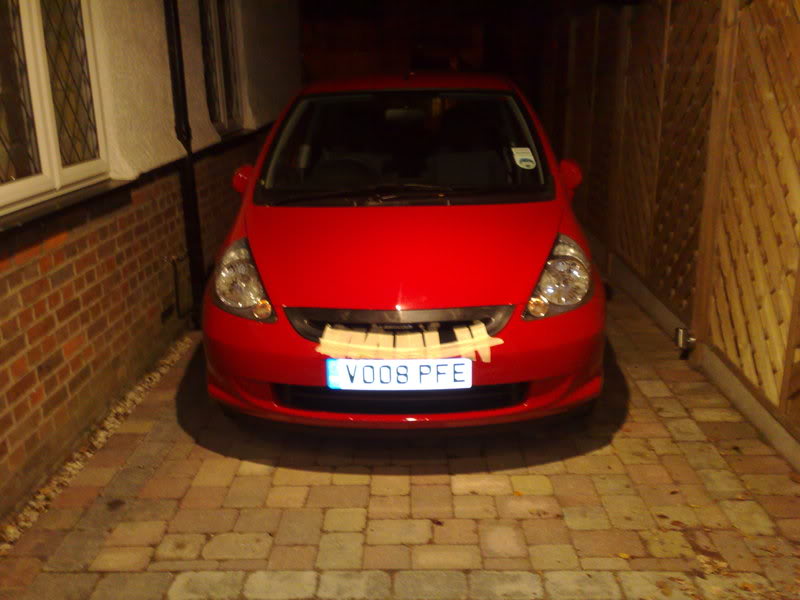

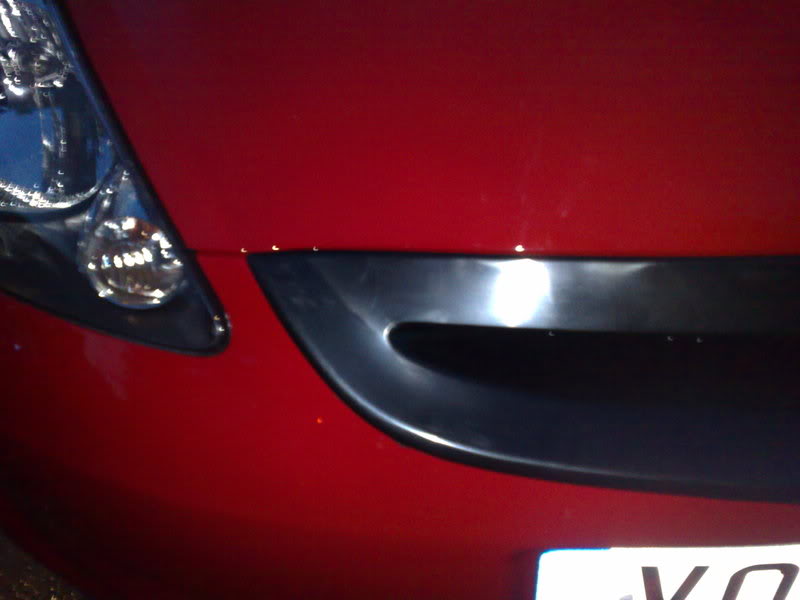

Result after fitting looked something like this.. ignore the tape, it was there to keep the tape touching the grille while the glue dried

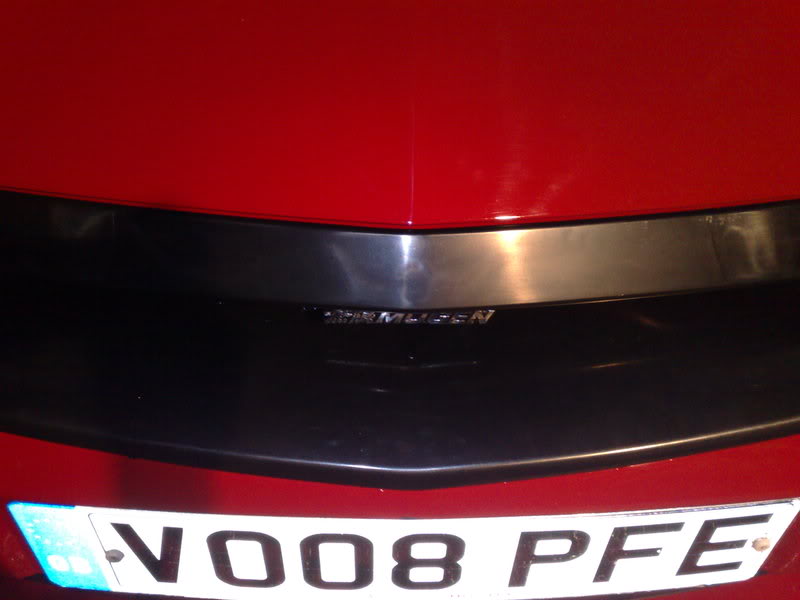

Here's the final product, again, sorry it's in the dark and kinda rubbish quality, i'll get some more tomorrow
Anyways, what do you guys think of it?
Sorry about the quality, i'll try and get some more tomorrow with a better camera, this'll hopefully give you a basic idea of what it looks like..
Got the bumper off to start with when fitting, pretty quick to do
Once the bumper was off it was simply a matter of getting the new grille in, problem was the fittings were completely different. In the end it had to be installed using double sided tape and cable ties hidden behind the grille.
Result after fitting looked something like this.. ignore the tape, it was there to keep the tape touching the grille while the glue dried

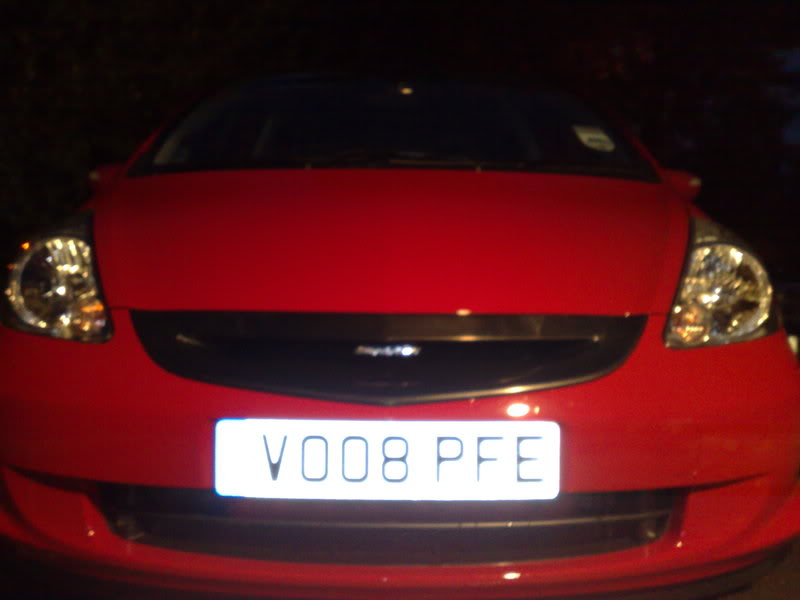

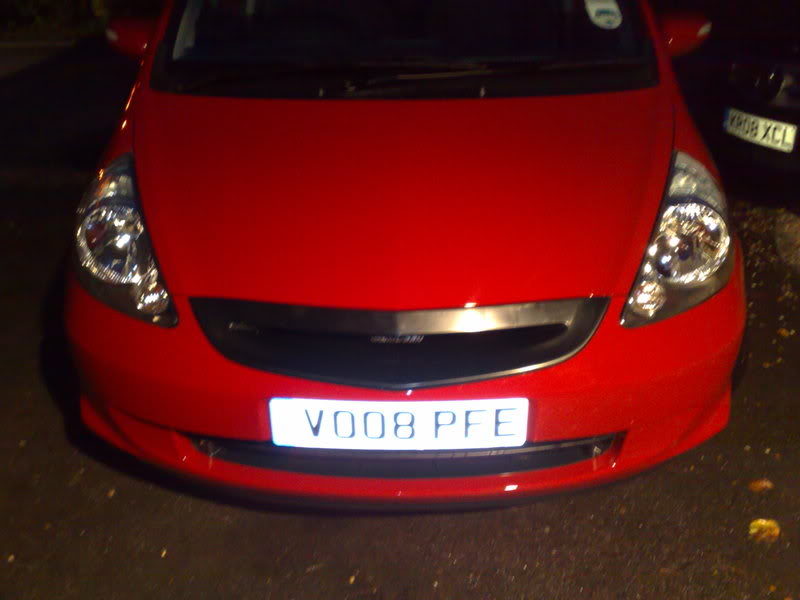

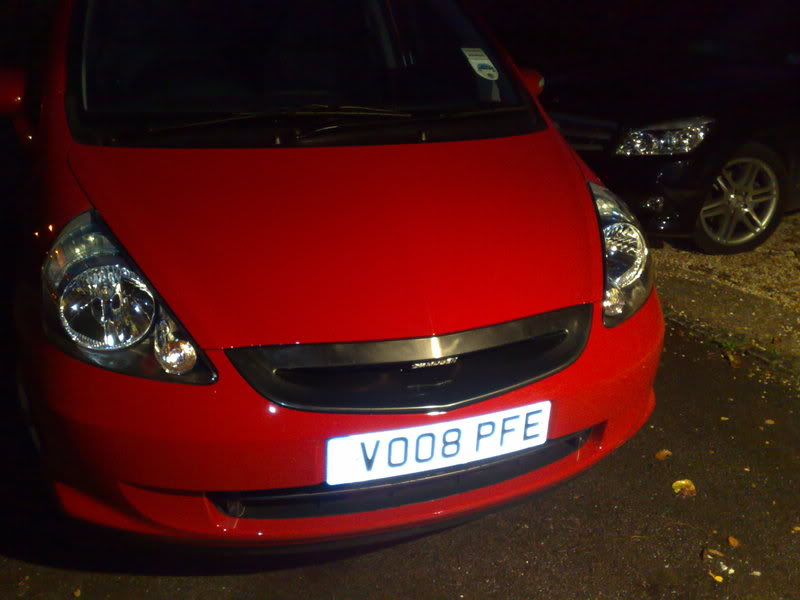

Here's the final product, again, sorry it's in the dark and kinda rubbish quality, i'll get some more tomorrow
Anyways, what do you guys think of it?
#5
It looks nice. The black grille on the red car looks nice. But it makes the front hole look bigger. I wanted it to get smaller. So I painted mine in the bodycolor of the car.
I also had some trouble get it to fit perfectly. I had to use some double sided tape on the edge on the bottom to get it to stick closer to the front bumper. It also seems that I have a diffrent type of kit. Not sure if mine is the "real" Mugen grille, but it looks likes yours only that I had two mounting arms on the top that should go under two of the screws for the bumper.
Here is some pictures of mine. I have not put in the Mugen crome badge yet, not sure if I ever would. Like it best without anything.
I may put in some black mesh behind that opening. But I'm not sure how that metal mesh should be mounted / fixed to the grille. Anyone here that has used a metal mesh here?

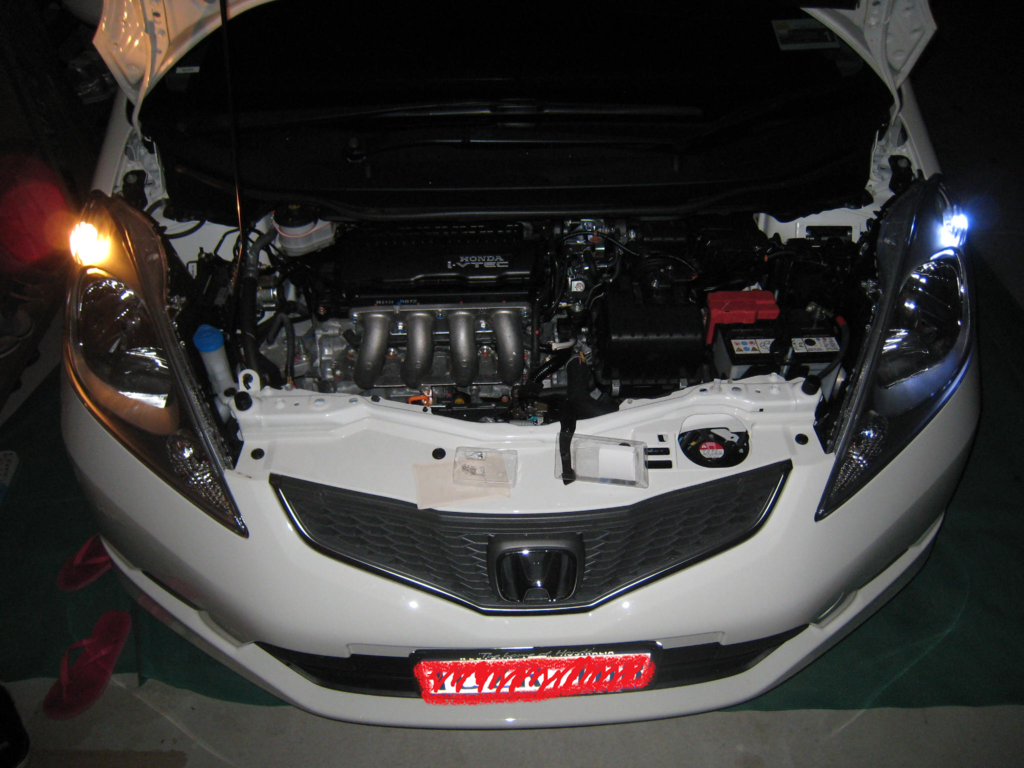

Here is some pictures of tryfitting and taking of the old grille.
Here is some picture of the finished result:
The last picture with new wheels too.
I also had some trouble get it to fit perfectly. I had to use some double sided tape on the edge on the bottom to get it to stick closer to the front bumper. It also seems that I have a diffrent type of kit. Not sure if mine is the "real" Mugen grille, but it looks likes yours only that I had two mounting arms on the top that should go under two of the screws for the bumper.
Here is some pictures of mine. I have not put in the Mugen crome badge yet, not sure if I ever would. Like it best without anything.
I may put in some black mesh behind that opening. But I'm not sure how that metal mesh should be mounted / fixed to the grille. Anyone here that has used a metal mesh here?
Here is some pictures of tryfitting and taking of the old grille.
Here is some picture of the finished result:
The last picture with new wheels too.
#6
I've got mesh behind mine, the back of the grille had screw mounting points though. Perhaps you could drill into the grille carefully and screw the mesh in?
Depends on the thickness of the plastic, and also on your paint, probably not a good idea to drill if you're worried about damaging it.
Depends on the thickness of the plastic, and also on your paint, probably not a good idea to drill if you're worried about damaging it.
#10
Where did you get the grill? I found these on e***:
eBay Motors: 06 07 08 HONDA FIT SPORT TYPE ABS FRONT GRILL GRILLE BK (item 270289489677 end time Nov-17-08 13:06:56 PST)
and here:
eBay Motors: 06 07 08 HONDA FIT SPORT TYPE JDM ABS HOOD GRILL GRILLE (item 200275114597 end time Nov-19-08 20:12:44 PST)
and not a bad price ~$50. I have a NHB FIT so the black will look stock!
I have been wondering about the install too but it looks like you guys didn't have a problem. It looks great.
eBay Motors: 06 07 08 HONDA FIT SPORT TYPE ABS FRONT GRILL GRILLE BK (item 270289489677 end time Nov-17-08 13:06:56 PST)
and here:
eBay Motors: 06 07 08 HONDA FIT SPORT TYPE JDM ABS HOOD GRILL GRILLE (item 200275114597 end time Nov-19-08 20:12:44 PST)
and not a bad price ~$50. I have a NHB FIT so the black will look stock!
I have been wondering about the install too but it looks like you guys didn't have a problem. It looks great.
#11
Hey dude,
I'm in the UK, so i got mine off of ebay UK, it was £11, so much cheaper than those ones, then again, it was already in the UK so the postage was cheap.
Both of those look good, just make sure that they'll be ok on the USDM Fit, the one I've fitted was based on the JDM - which doesn't sit flush with the USDM bumper.
Cheers for the compliment Glad you think it looks good!
Gimme a shout if you need any advice on fitting!
Chris
I'm in the UK, so i got mine off of ebay UK, it was £11, so much cheaper than those ones, then again, it was already in the UK so the postage was cheap.
Both of those look good, just make sure that they'll be ok on the USDM Fit, the one I've fitted was based on the JDM - which doesn't sit flush with the USDM bumper.
Cheers for the compliment Glad you think it looks good!
Gimme a shout if you need any advice on fitting!
Chris
#13
Yep I believe Mugen do make an official part, however, I've also heard that they only produce it for the JDM front end, so if you're USDM it's not gonna fit and sit flush.. then again, i think there's a thread on here somewhere which shows what the JDM Mugen looks like on a USDM Fit
If you want to get hold of one, ebay have plenty of rip-off ones, just gotta make sure they'll fit!
If you want to get hold of one, ebay have plenty of rip-off ones, just gotta make sure they'll fit!
