2007 Black Z06 Vette goes under the Tru Shine knife!



I took a trip back up to Healthy Balance Meals up in Sevierville TN to take on the 07 Z06 vette. These people are great! and their food is even better! When I got there the weather wasn't the greatest but I was crossing my fingers that the sun was going to pop out!

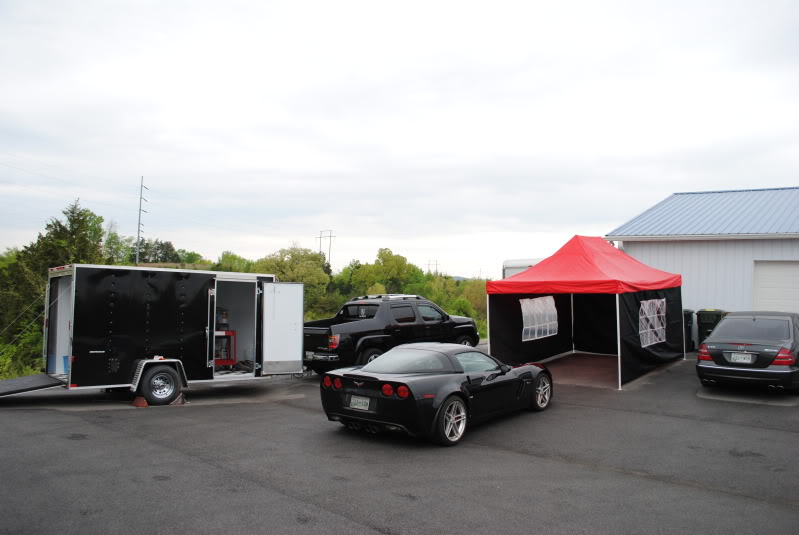

This was my First Full mobile job with my new trailer, so I was very excited to try out my whole new set up.

It took me about 30 min to learn to park this crazy thing but I finally got it!


Name:  DSC_0599.jpg
Views: 49
Size:  82.8 KB

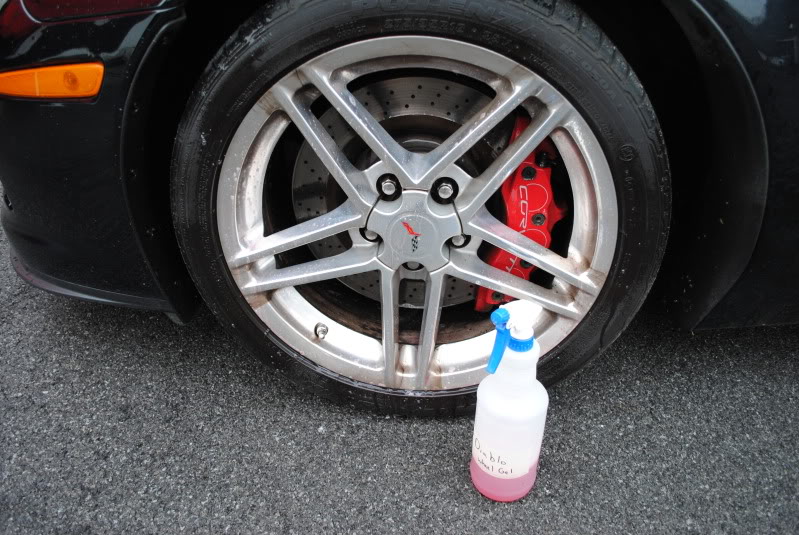

I got started by letting the Chemical Guys "Diablo Wheel Gel" dwell for a good 10 minutes, this stuff is completely PH balanced and wont hurt any type of wheel surface or bake pads, but yet it eats away brake dust like no other!

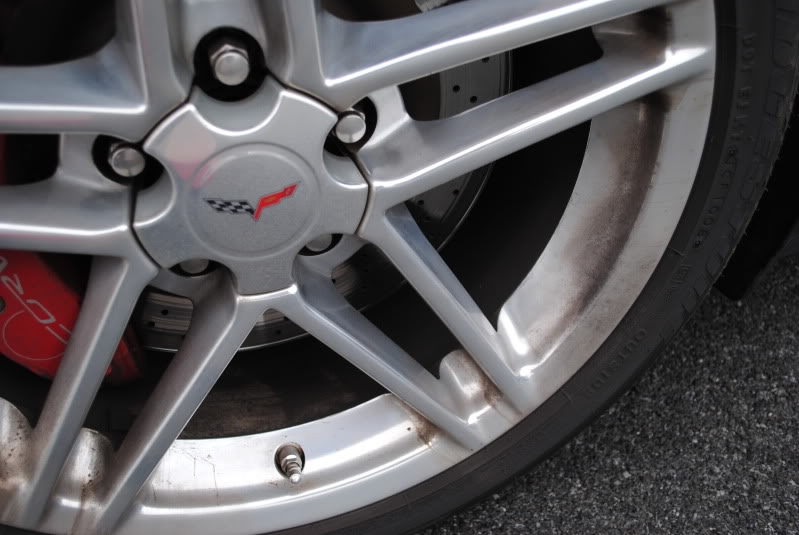

The barrels were really black, the wheels really should have been removed and cleaned individually and clayed and steam cleaned, but the owner didn't want to go to that extent

Name:  DSC_0602.jpg
Views: 72
Size:  140.2 KB

Name:  DSC_0609.jpg
Views: 55
Size:  94.1 KB

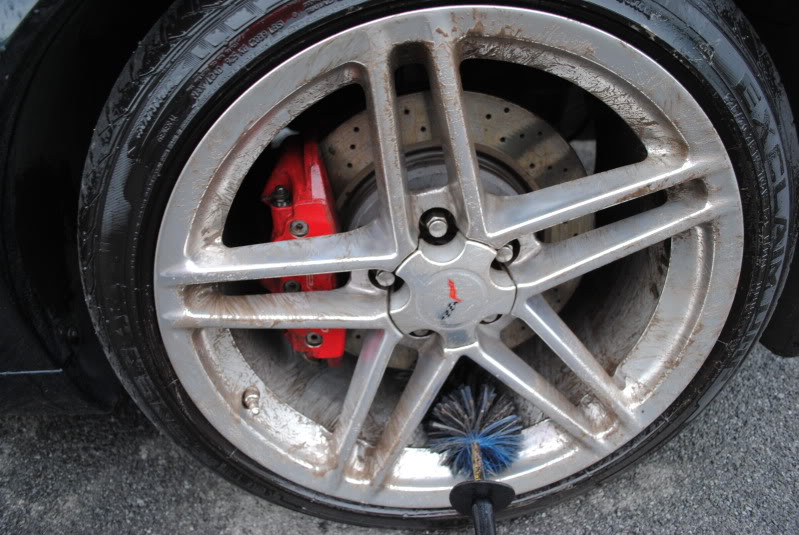

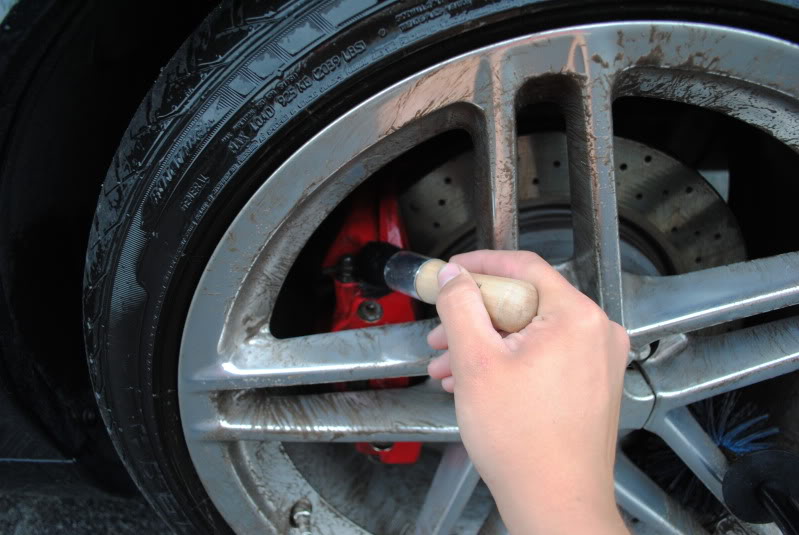

So I just gave it a real good scrubbin!

Name:  DSC_0613.jpg
Views: 71
Size:  123.8 KB

Name:  DSC_0618.jpg
Views: 57
Size:  95.9 KB

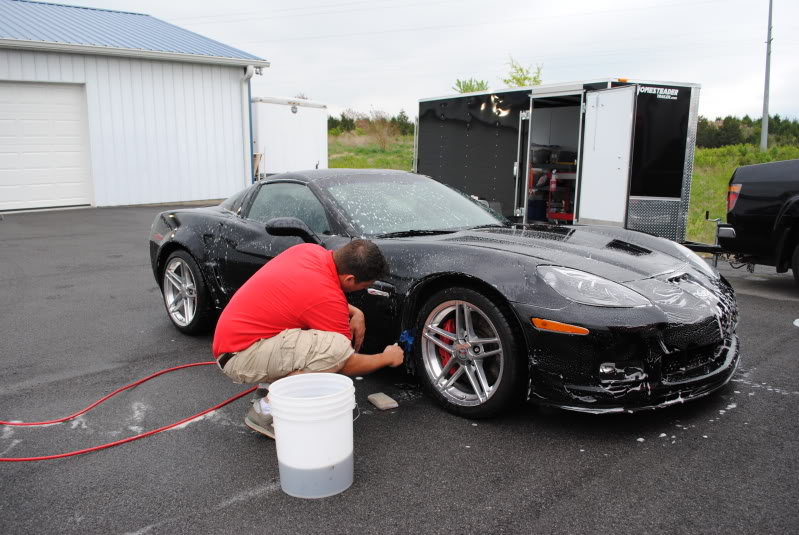

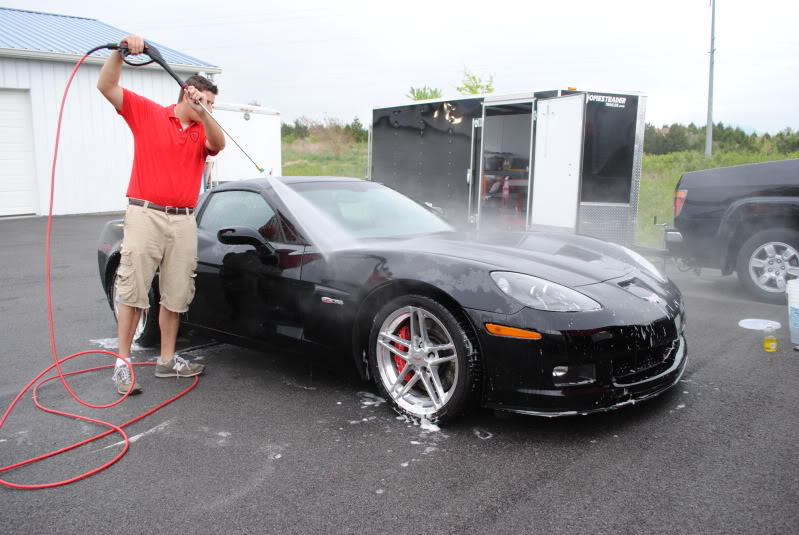

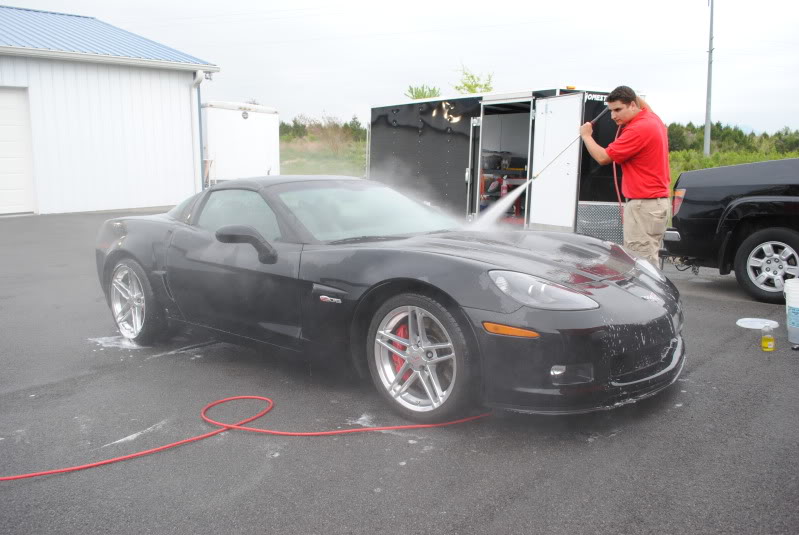

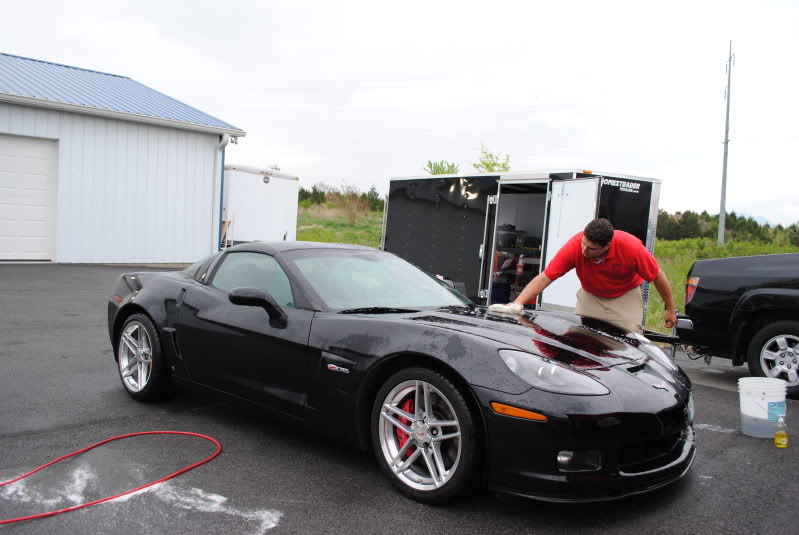

I knocked all the heavy stuff off with my Troybilt pressure washer and began my Single bucket w/ Grit guard and some Joy dish detergent to strip all previous wax off of the car.

Name:  DSC_0629.jpg
Views: 50
Size:  115.7 KB

Name:  DSC_0624.jpg
Views: 47
Size:  101.9 KB

Name:  DSC_0625.jpg
Views: 95
Size:  117.7 KB

Name:  DSC_0630.jpg
Views: 53
Size:  96.7 KB

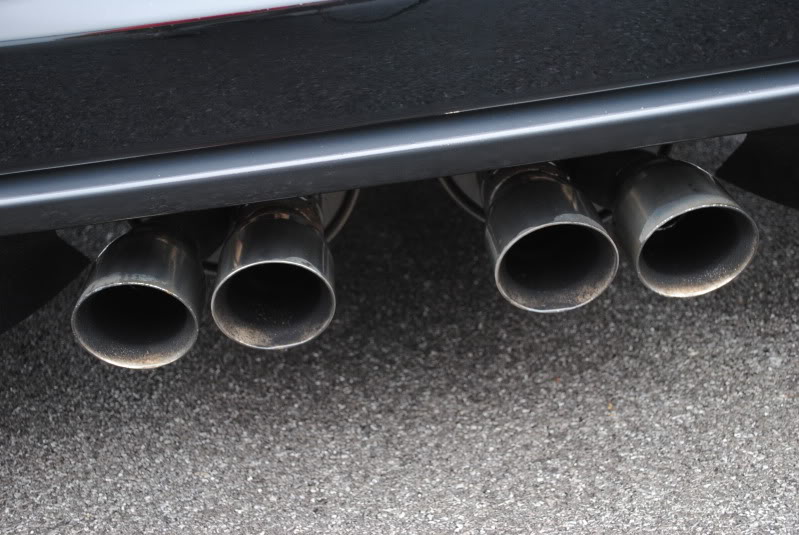

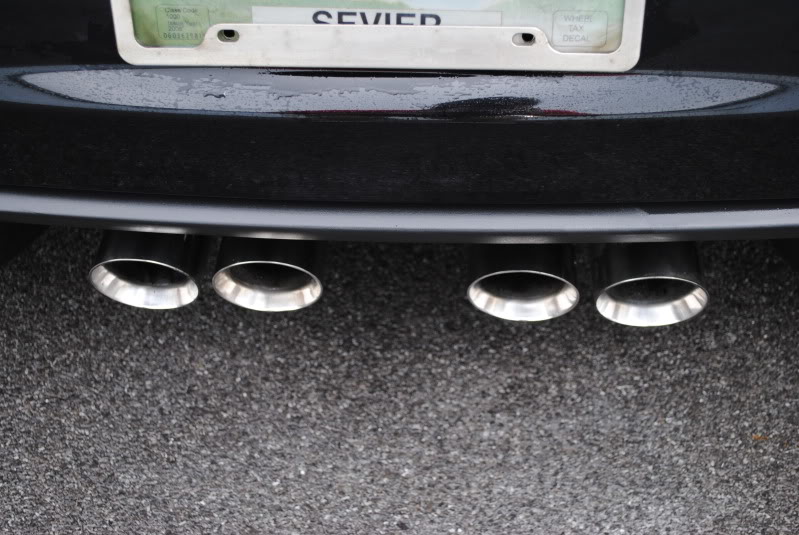

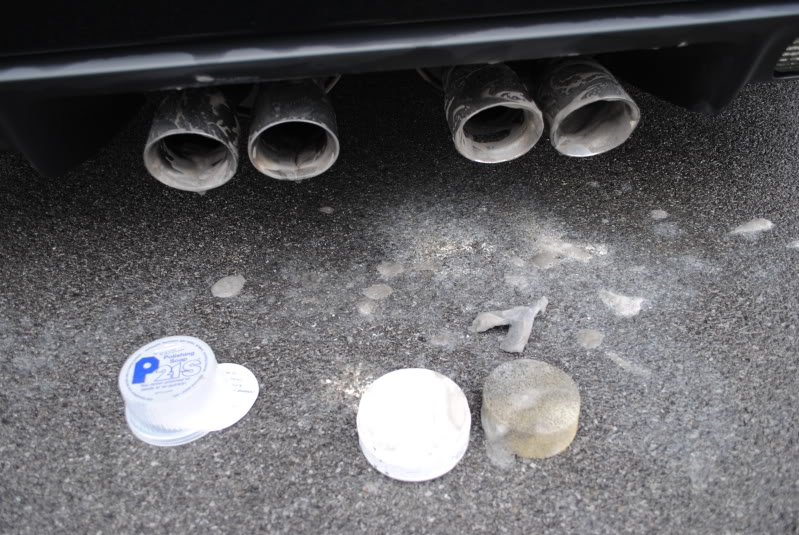

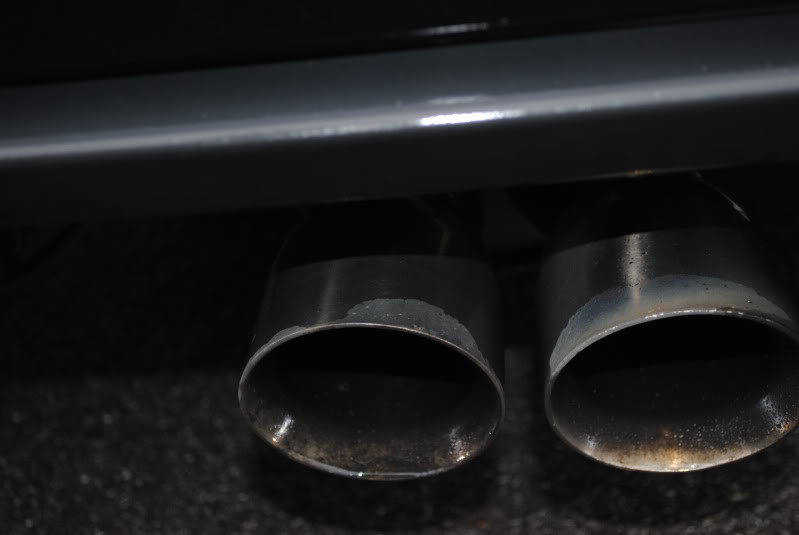

The exhuast tips were caked on and stained with black soot. I used P21s Polishing w/ #0000 steel wool to scrub it all of to a nice polished shine

Name:  DSC_0632.jpg
Views: 121
Size:  112.0 KB

Name:  DSC_0634.jpg
Views: 103
Size:  66.2 KB

Name:  DSC_0640.jpg
Views: 49
Size:  133.5 KB

Name:  DSC_0645.jpg
Views: 53
Size:  116.2 KB

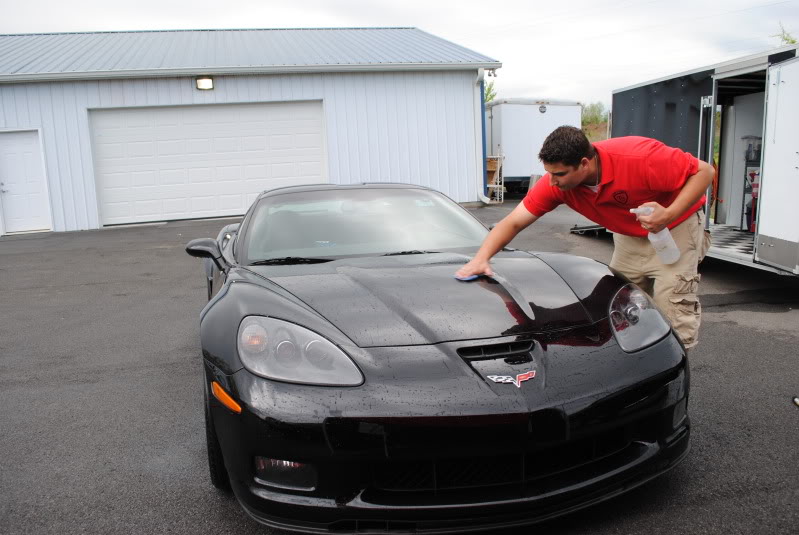

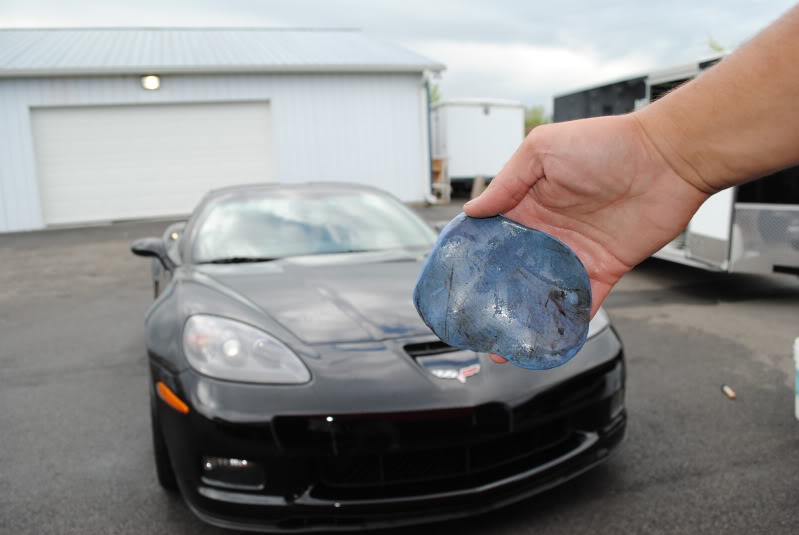

After the Wash I began to claybar the car with my automagic blue fine clay and some diluted ONR as clay lube.

Name:  DSC_0647.jpg
Views: 48
Size:  101.5 KB

Name:  DSC_0649.jpg
Views: 43
Size:  72.1 KB

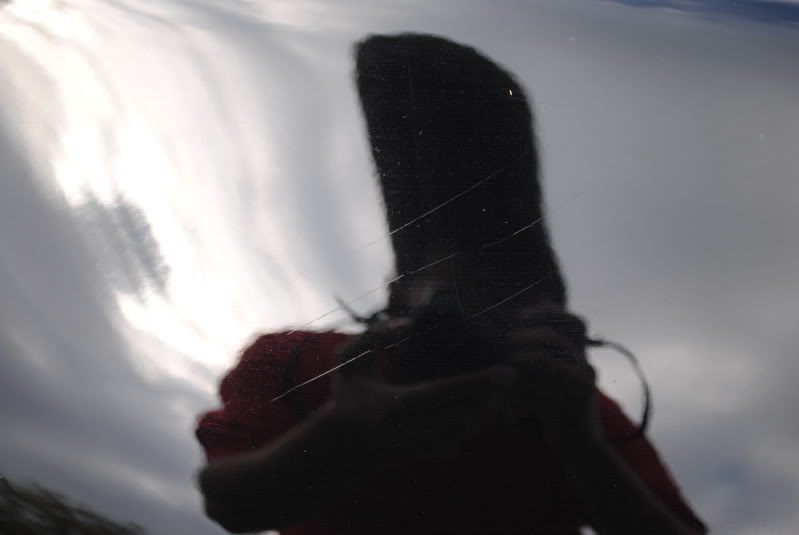

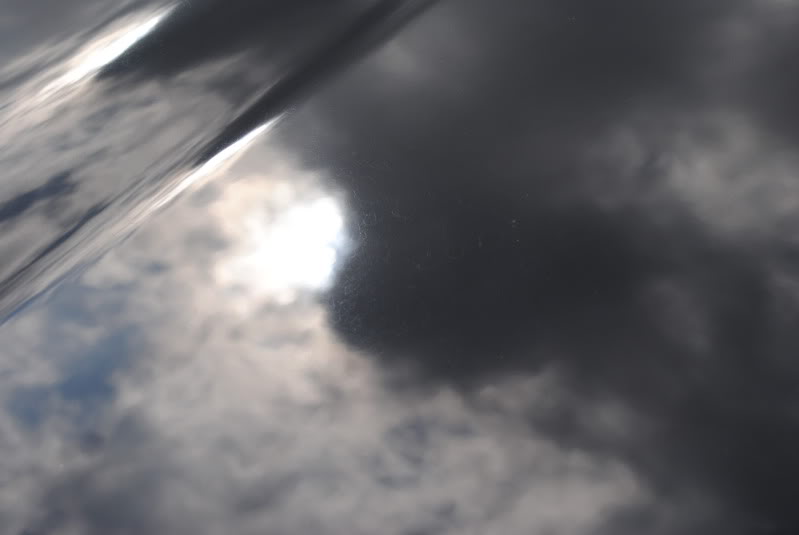

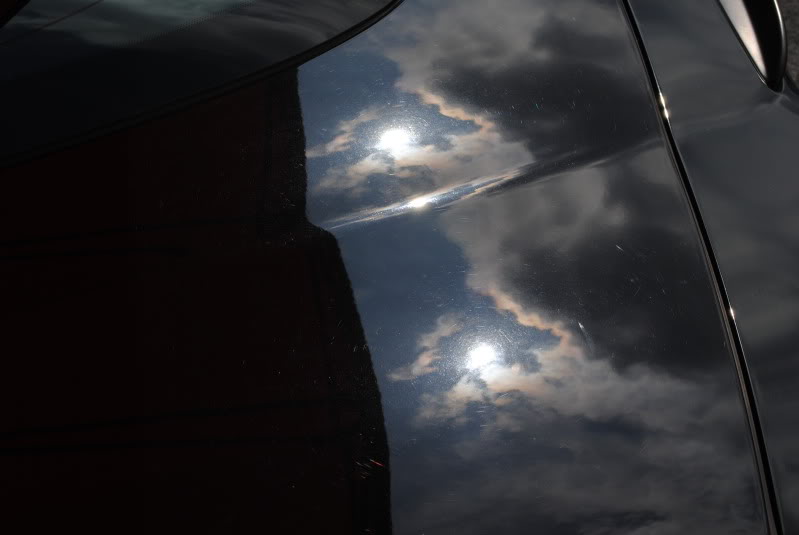

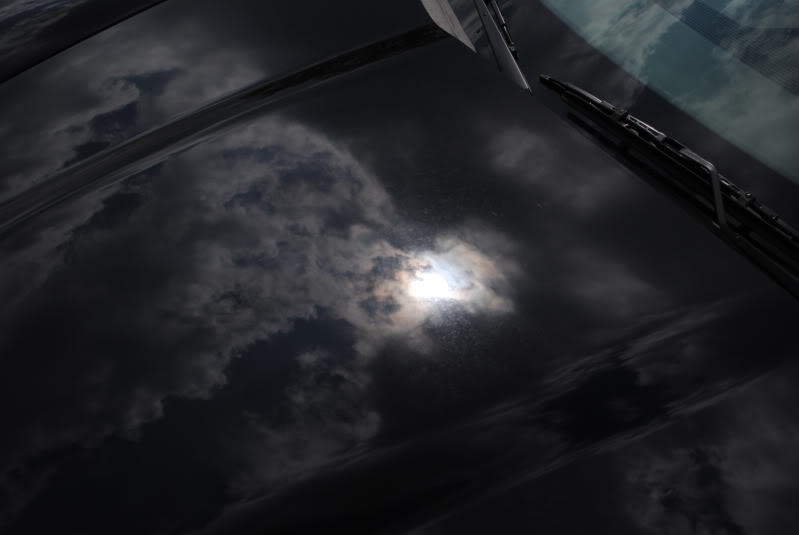

The car had really bad Water etching from numerous times of owner letting the car air dry in the sun

Name:  DSC_0650.jpg
Views: 32
Size:  61.6 KB

Name:  DSC_0652.jpg
Views: 90
Size:  65.4 KB

Name:  DSC_0659.jpg
Views: 55
Size:  66.9 KB

Name:  DSC_0663.jpg
Views: 88
Size:  57.5 KB

Name:  DSC_0670.jpg
Views: 31
Size:  52.6 KB

Continued Below...........

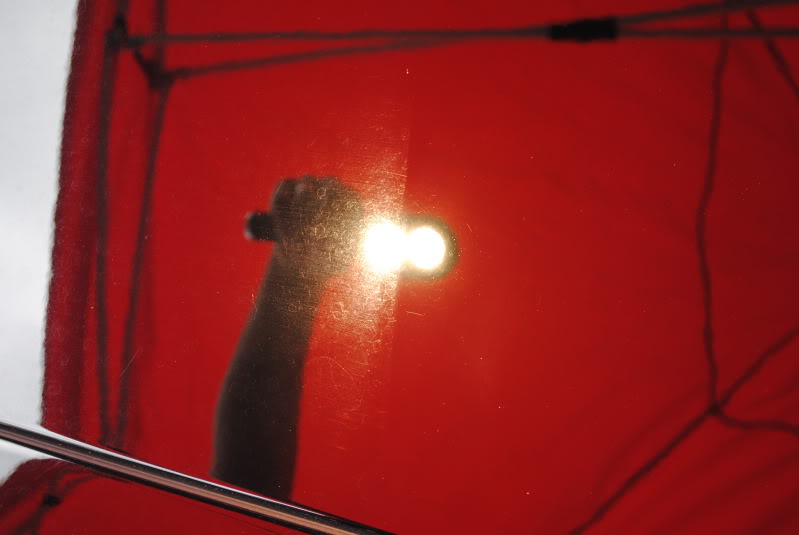

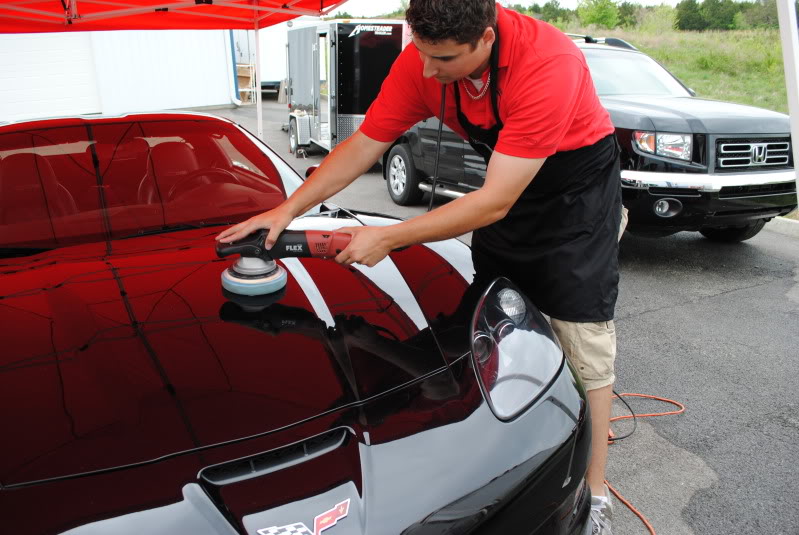

Here is a 50/50 test spot of the paint surface after M105/cyan hydrotech pad via FLEX 3401 seen with my Brinkman Duel xenon swirl finder light.

Name:  DSC_0677.jpg
Views: 88
Size:  62.4 KB


Name:  DSC_0678.jpg
Views: 44
Size:  115.1 KB

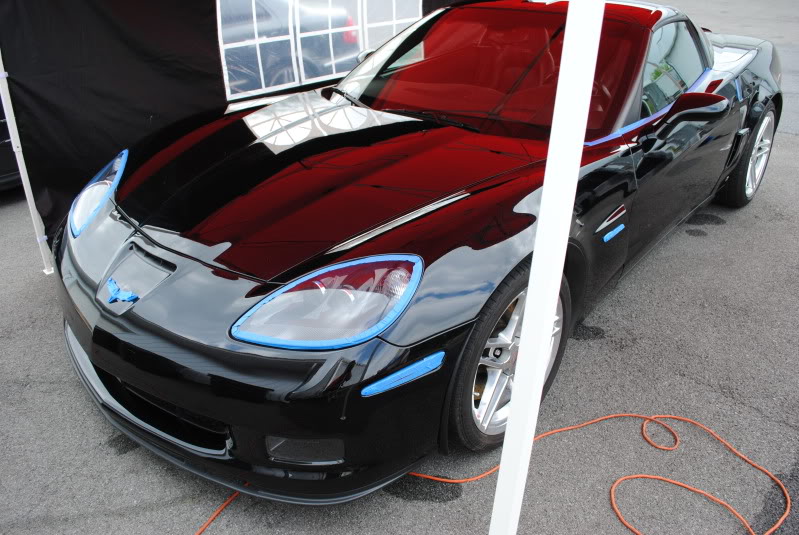

Now She's all taped up ready for some love!

Name:  DSC_0685.jpg
Views: 49
Size:  128.8 KB

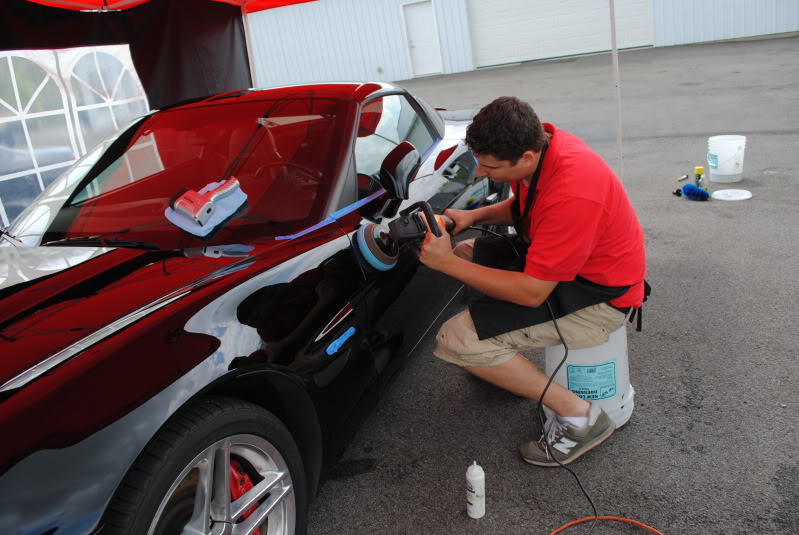

I decided to use the Rotary with Meguiars W66 backing plate to speed up the process

Name:  DSC_0686.jpg
Views: 149
Size:  114.6 KB

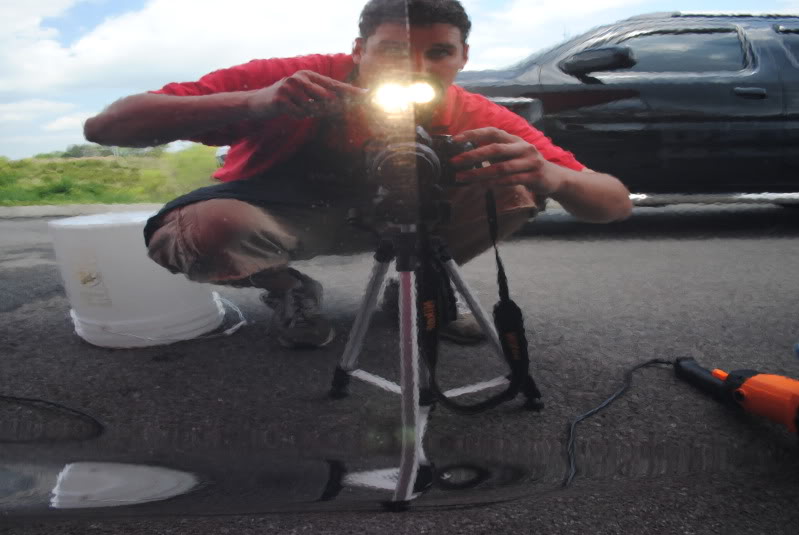

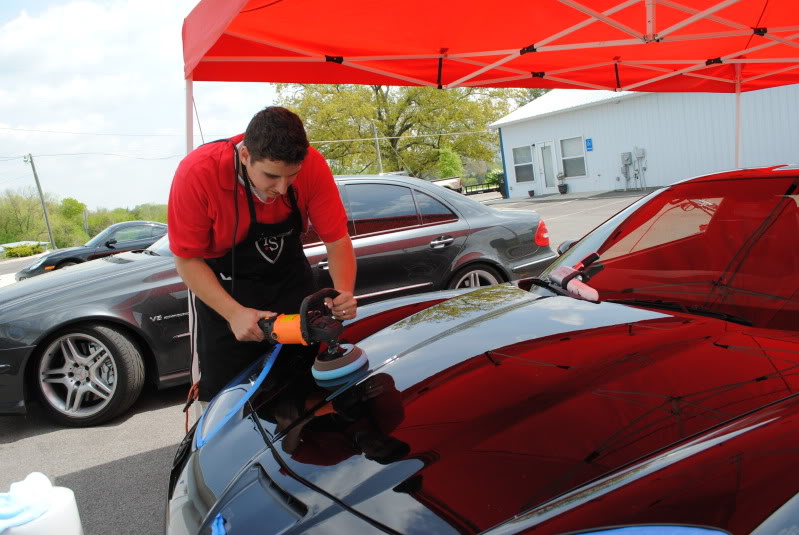

Here is another 50/50 using the Brinkmans Duel Xenon Swirl Finder.

Name:  DSC_0690.jpg
Views: 46
Size:  81.4 KB

Name:  DSC_0693.jpg
Views: 95
Size:  112.8 KB

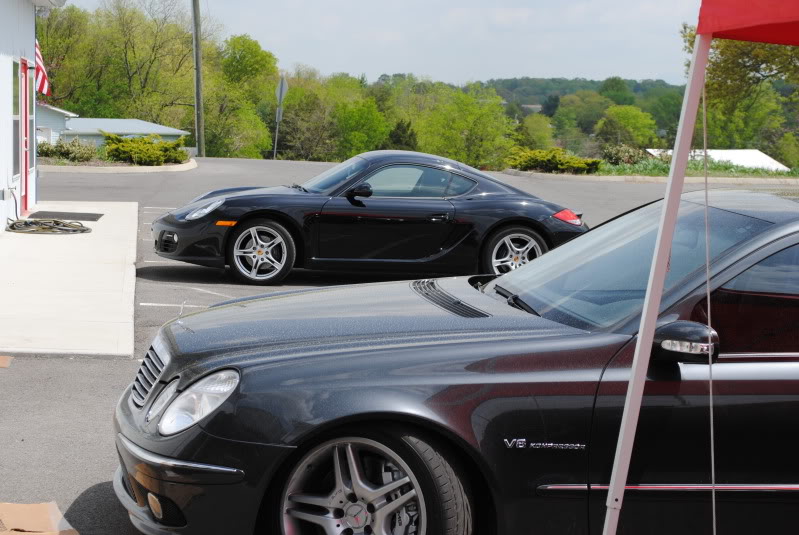

Hopefully I'll be getting this car to detail later on down the road

Name:  DSC_0692.jpg
Views: 63
Size:  115.2 KB

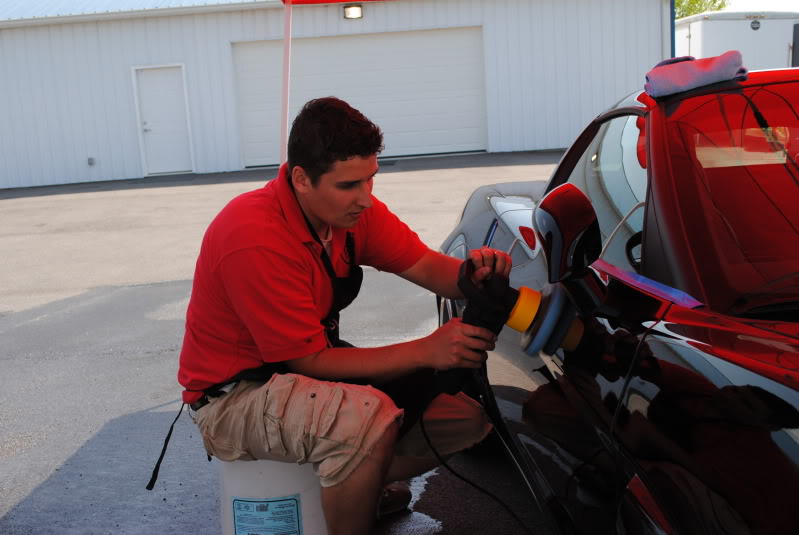

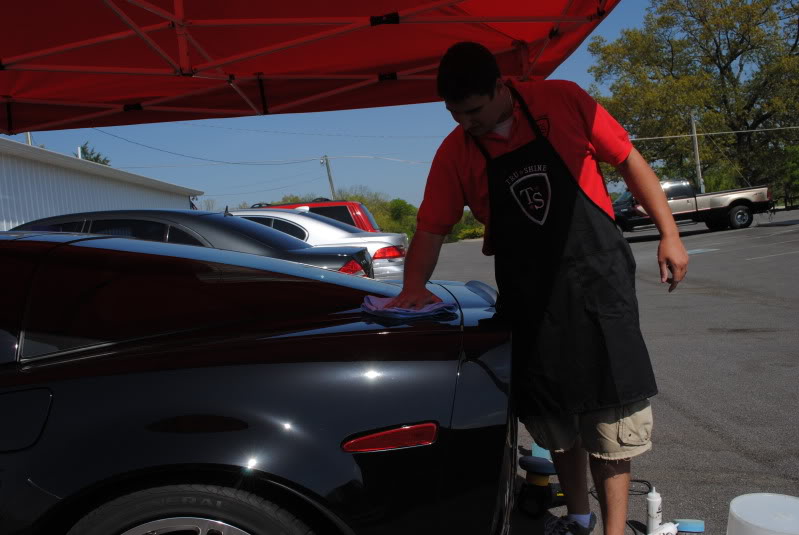

This is me trying out the Meguiars G110v2, I love this thing!

Name:  DSC_0695.jpg
Views: 85
Size:  88.9 KB

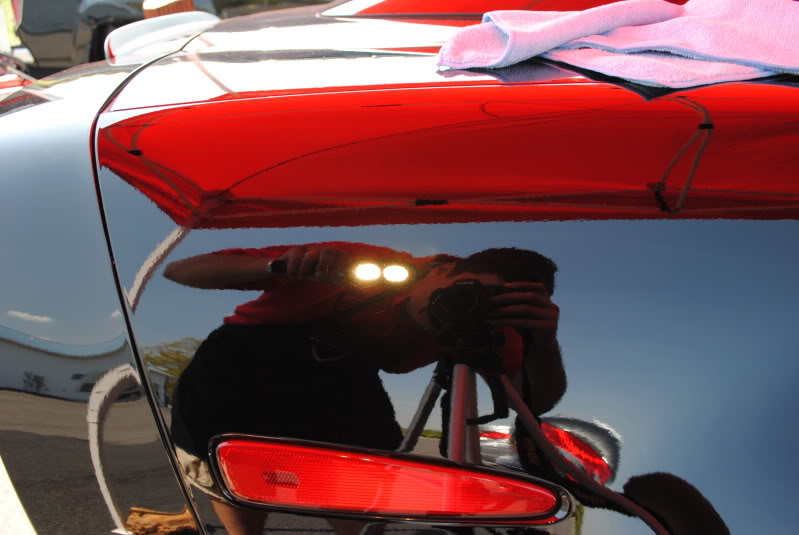

Name:  DSC_0697.jpg
Views: 50
Size:  85.7 KB

Name:  DSC_0698.jpg
Views: 60
Size:  89.2 KB

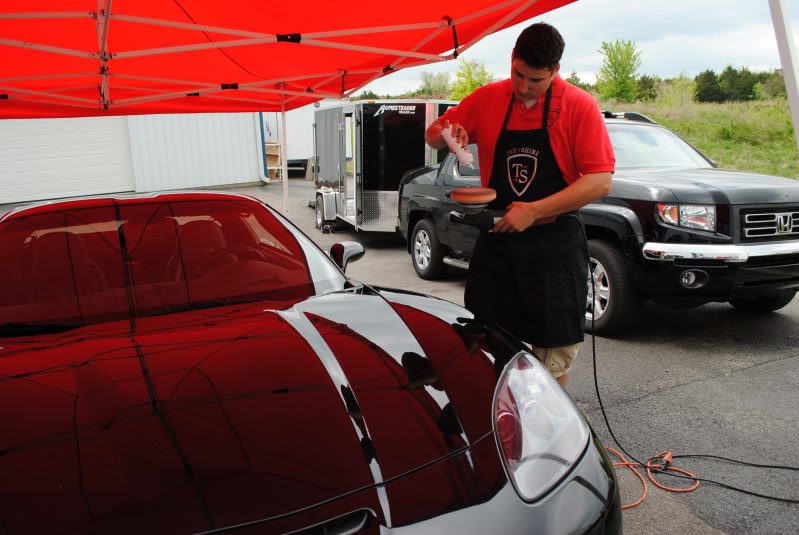

Polished out with M205/Tangerine Hydrotech pad via FLEX 3401

Name:  DSC_0684.jpg
Views: 42
Size:  109.5 KB

The pollen started getting out of control and we had to bring the car inside to finish it down without marring up the finish with pollen scratches

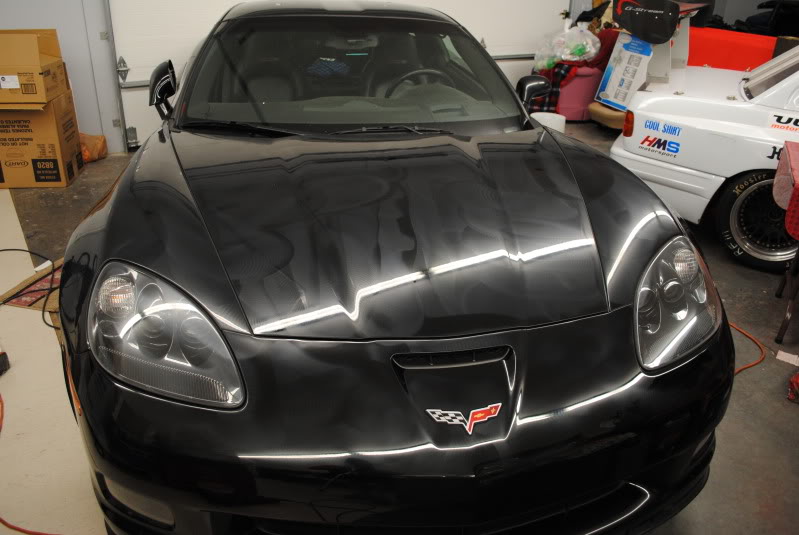

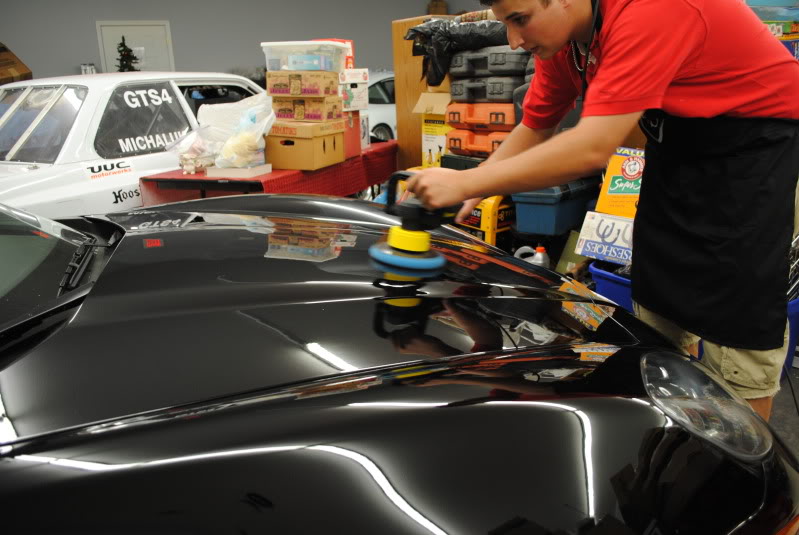

So after all the polish was completed I applied Black Fire Wet diamond with the Lake country Blue Finishing pad Via G110v2

Name:  DSC_0703.jpg
Views: 146
Size:  103.2 KB

Name:  DSC_0705.jpg
Views: 46
Size:  95.4 KB

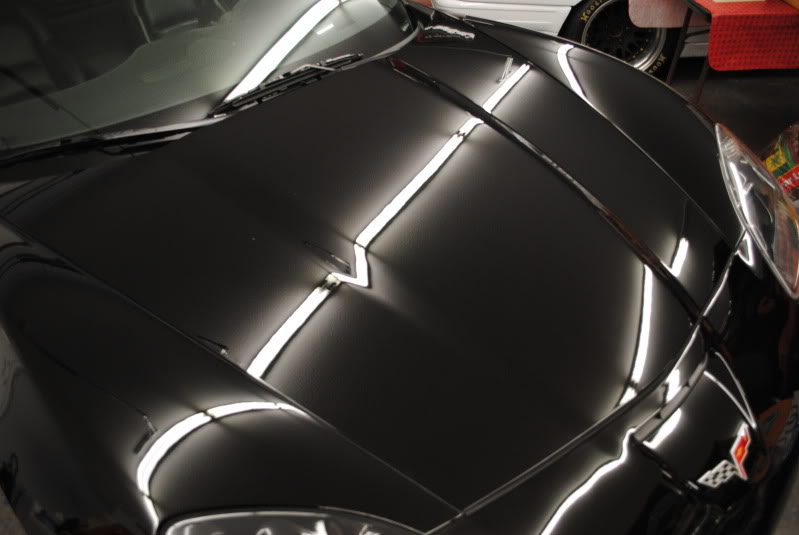

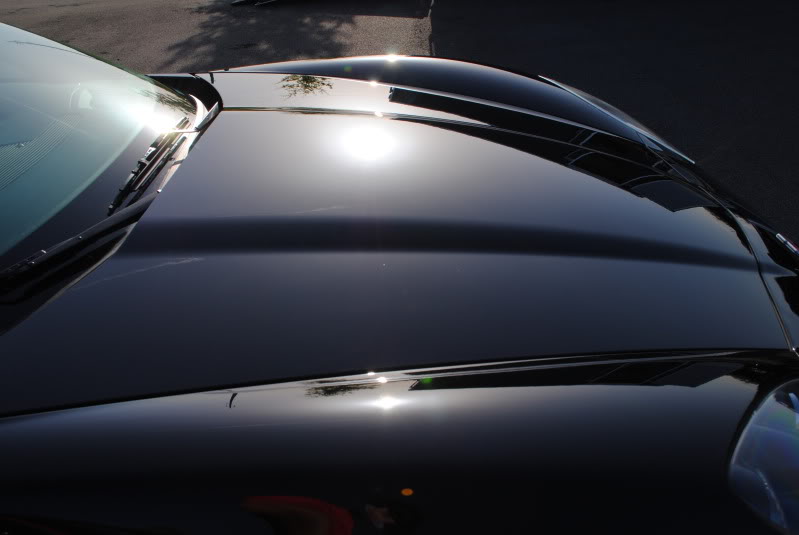

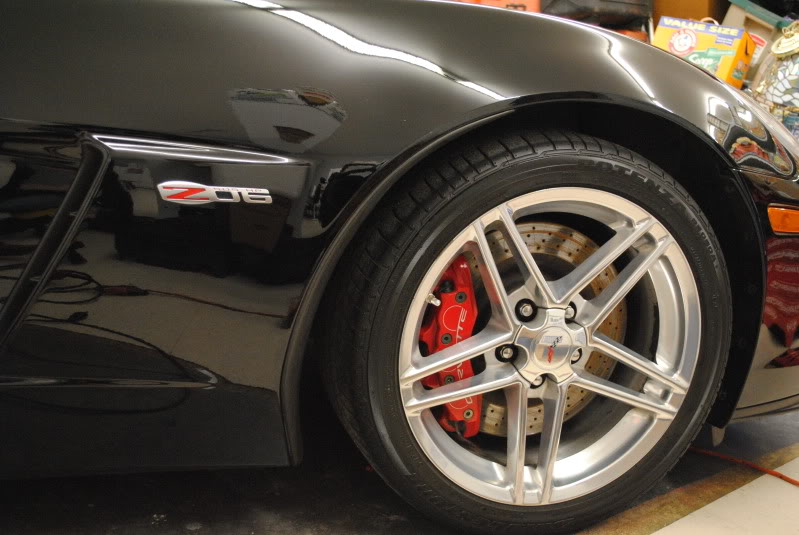

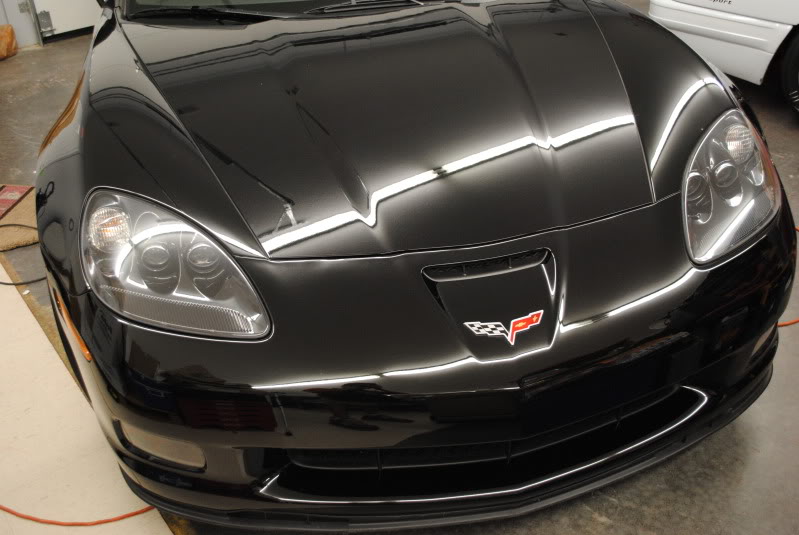

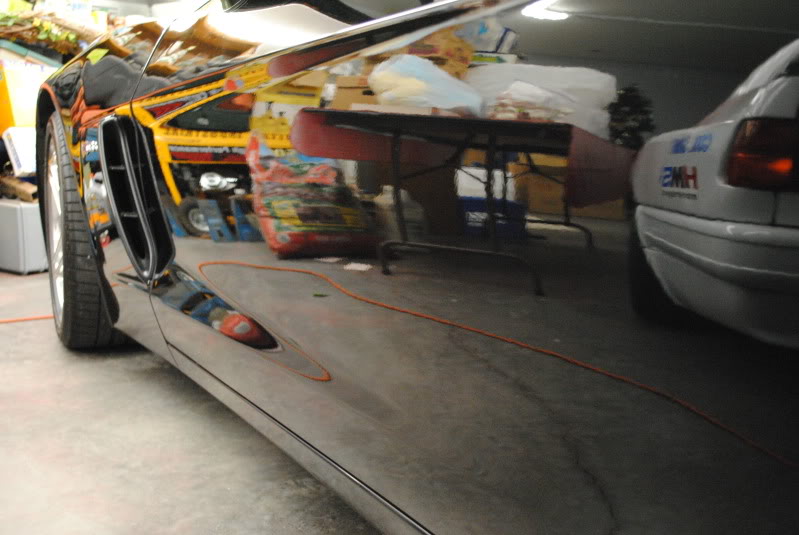

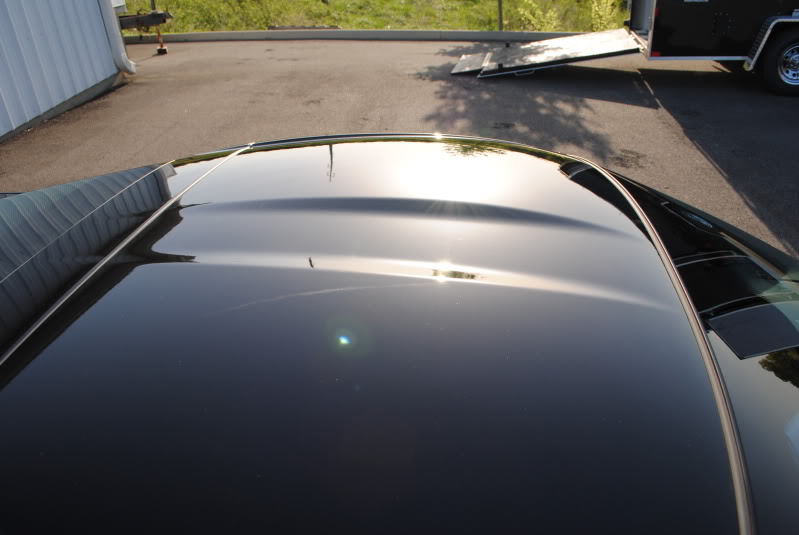

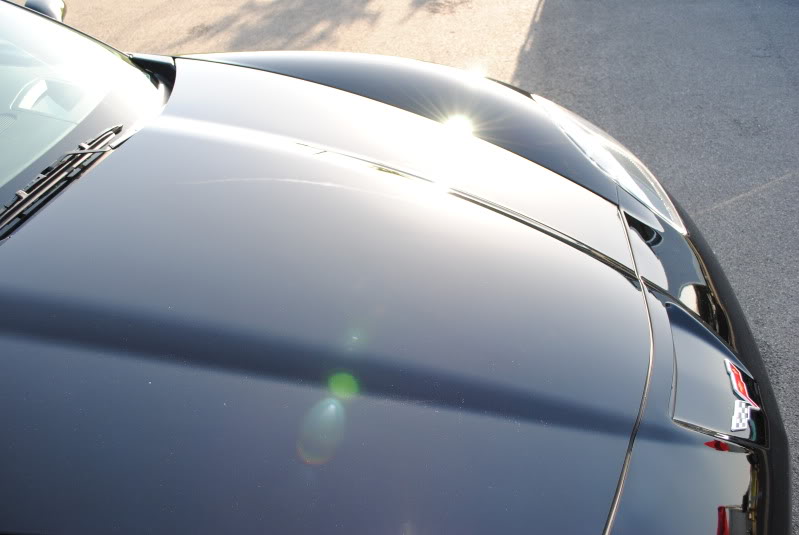

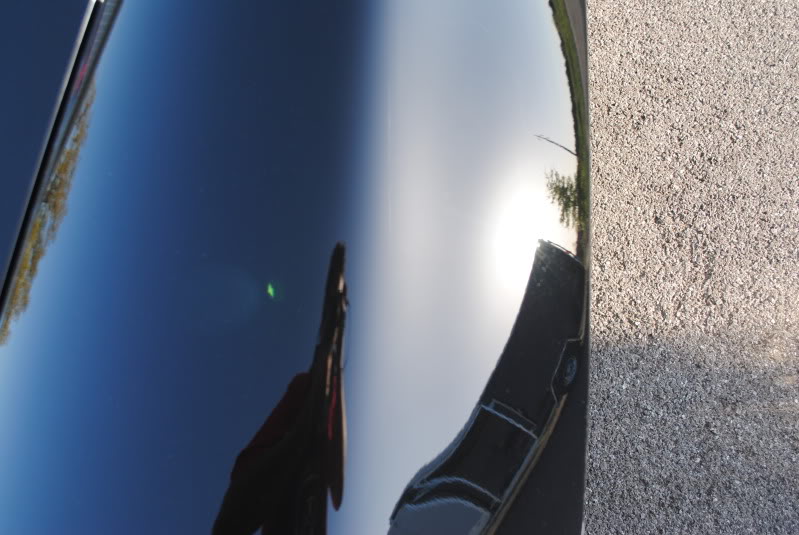

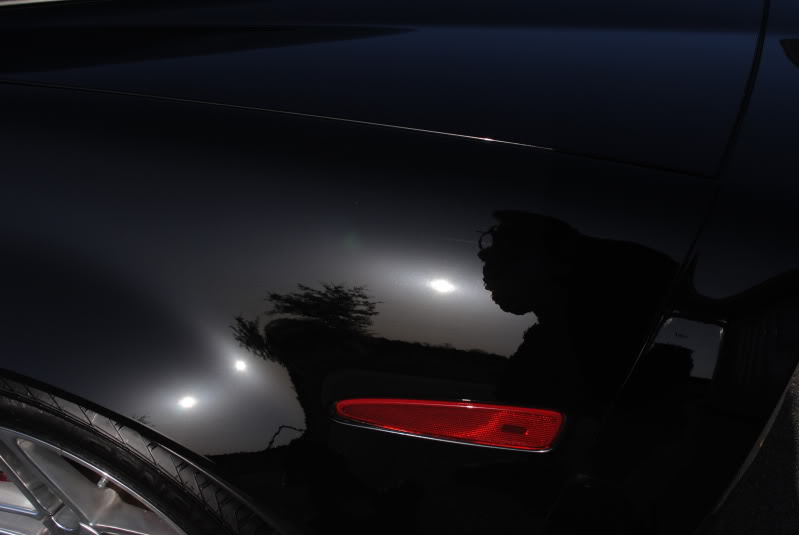

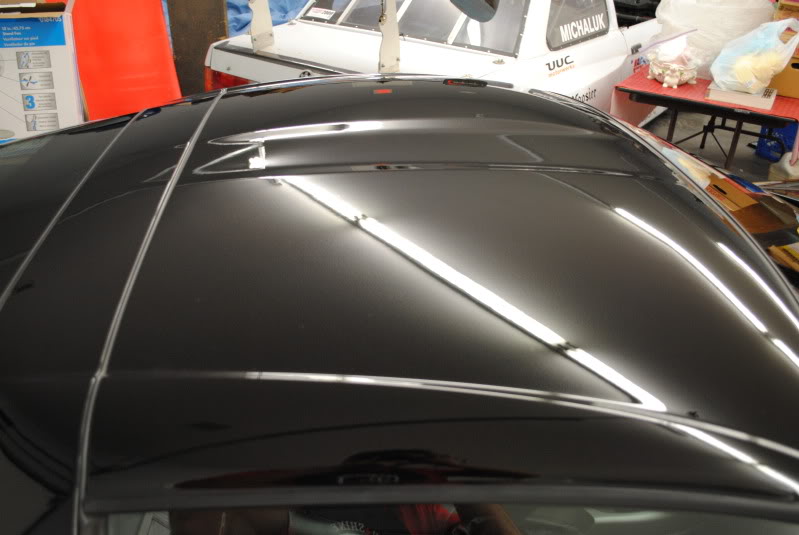

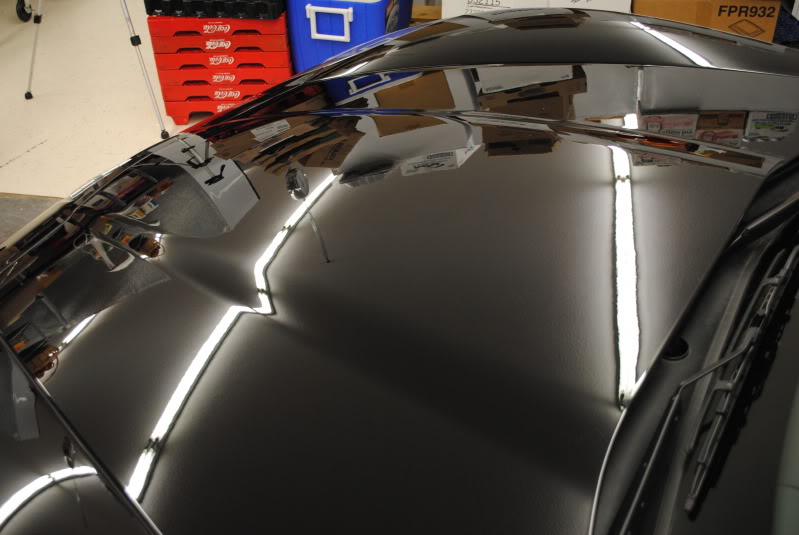

After letting it cure, I removed the BFWD and here are some of the Final Shots!

Name:  DSC_0706.jpg
Views: 53
Size:  92.9 KB

Name:  DSC_0707.jpg
Views: 94
Size:  73.0 KB

Name:  DSC_0708.jpg
Views: 118
Size:  79.7 KB

Name:  DSC_0710.jpg
Views: 94
Size:  92.4 KB

Name:  DSC_0715.jpg
Views: 48
Size:  84.6 KB

Name:  DSC_0717.jpg
Views: 52
Size:  103.9 KB



Name:  DSC_0721.jpg
Views: 115
Size:  66.0 KB

Name:  DSC_0722.jpg
Views: 47
Size:  74.6 KB

Name:  DSC_0723.jpg
Views: 43
Size:  75.7 KB

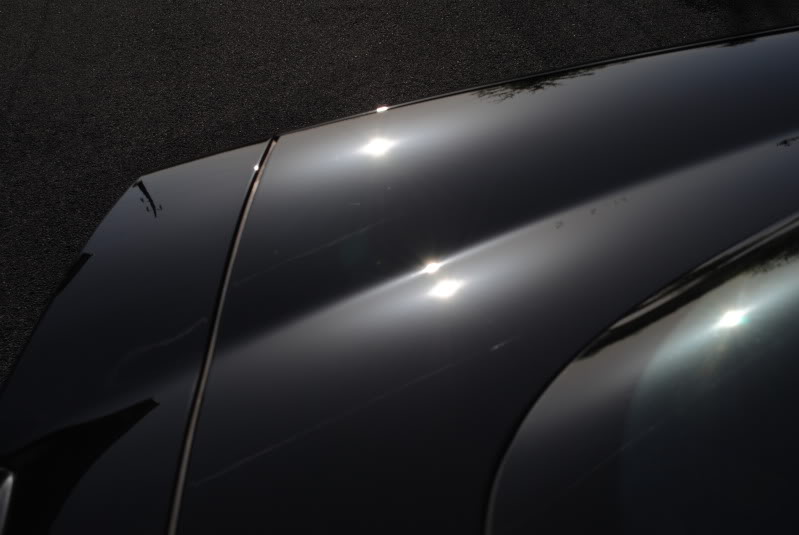

Name:  DSC_0728.jpg
Views: 43
Size:  67.2 KB

Name:  DSC_0729.jpg
Views: 35
Size:  64.1 KB

Name:  DSC_0737.jpg
Views: 40
Size:  107.7 KB

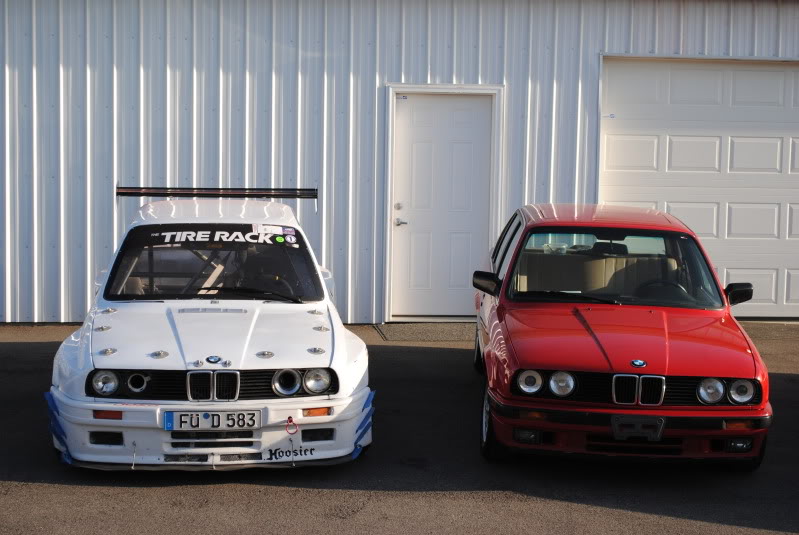

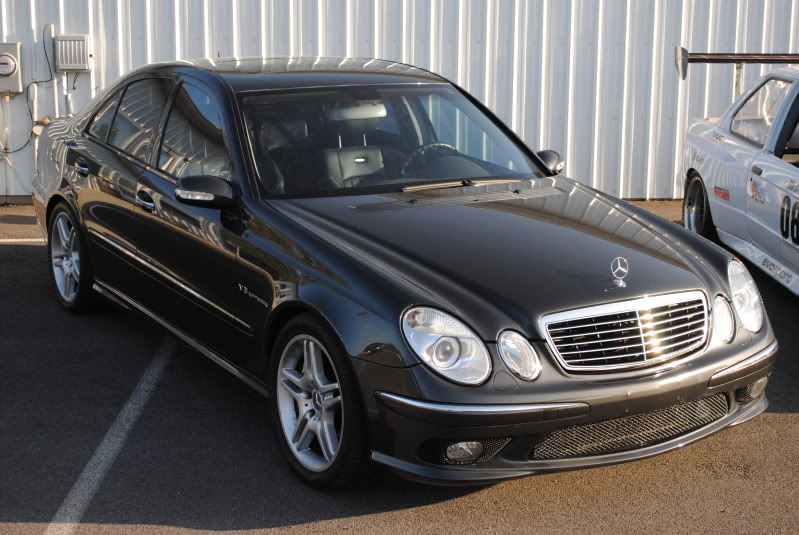

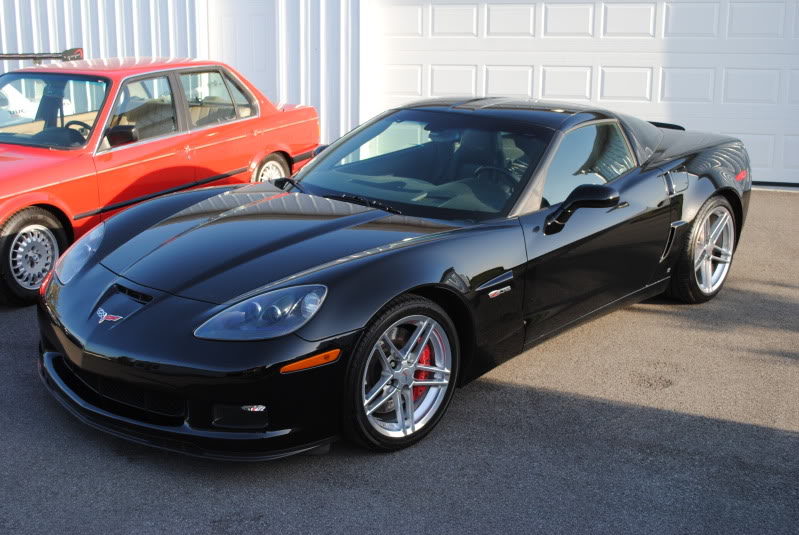

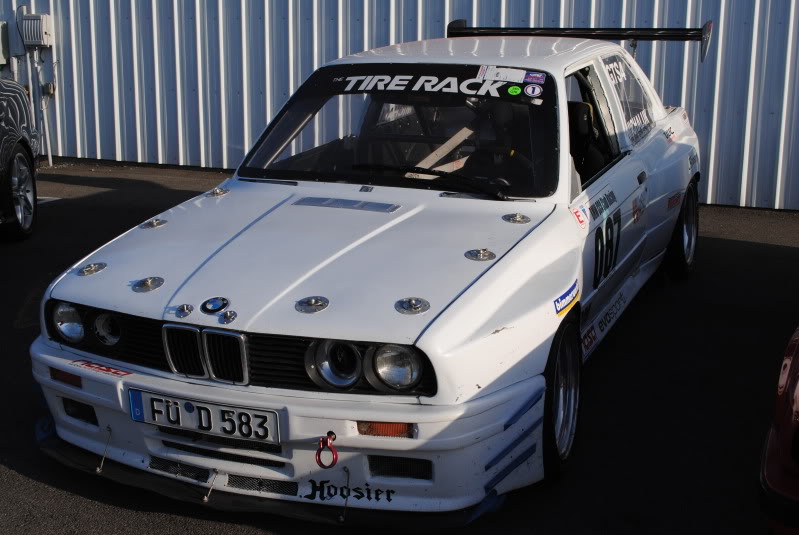

And here are some bonus pics

Name:  DSC_0744.jpg
Views: 33
Size:  120.8 KB

Name:  DSC_0746.jpg
Views: 53
Size:  119.0 KB

Name:  DSC_0749.jpg
Views: 92
Size:  106.9 KB


Name:  DSC_0750.jpg
Views: 130
Size:  121.1 KB

Name:  DSC_0754.jpg
Views: 91
Size:  107.1 KB

Thanks for viewing, have a blessed day!!!


  #2
Old 04-19-2010, 04:36 PM
Choro-Q_Fit's Avatar
Member
5 Year Member
iTrader: (2)
Join Date: Nov 2008
Location: Tri-State
Posts: 375
Another amazing detail! Tru Shine FTMFW

I'm addicted to the b4 shots of how bad it looked and the crazy results of how great it looks.

  #3
Old 04-19-2010, 05:00 PM
HONDAMATIC's Avatar
Member
iTrader: (4)
Join Date: Aug 2007
Location: hawaii
Posts: 1,850
was the owner like this

  #4
Old 04-19-2010, 07:14 PM
Fitting's Avatar
Member
5 Year Member
iTrader: (37)
Join Date: Dec 2007
Location: 310, CA
Posts: 2,306
Nice work.How long did it take to do the Vette?

  #5
Old 04-20-2010, 12:05 PM
Fallen_Rock's Avatar
Member
Thread Starter
iTrader: (2)
Join Date: Jun 2009
Location: Knoxville TN
Posts: 365
Originally Posted by HONDAMATIC
was the owner like this
he sure was!


Originally Posted by Choro-Q_Fit
Another amazing detail! Tru Shine FTMFW

I'm addicted to the b4 shots of how bad it looked and the crazy results of how great it looks.
Thanks I love doing it! (That's what she said!!!)

Originally Posted by Fitting
Nice work.How long did it take to do the Vette?
I actually got this one done in about 9 hours. It wasn't to rough but it still needed some TLC

  #6
Old 04-20-2010, 02:57 PM
z06dustin's Avatar
Member
5 Year Member
Join Date: Sep 2008
Location: PHX
Posts: 189
thanks for the info looks like you do good work.

  #7
Old 04-21-2010, 12:23 AM
qbmurderer13's Avatar
Touched by his noodly appendage
iTrader: (6)
Join Date: Oct 2008
Location: Orlando, FL
Posts: 2,373
You have official aprons?! and a trailer?! Badass dude. I cant believe how far you have come in such a short time. Come down to disney world already and help me detail my car. I feel like taking some pictures of my car to show you the condition its in. It is absolutely filthy and disgusting, bugs are plastered all over the front, its horrible dude lol. I wish I had more time and money to devote to detailing.

Good luck with your business though man im sure youll do great. And get your logo and contact info on that trailer asap!

  #8
Old 04-21-2010, 01:04 PM
Fallen_Rock's Avatar
Member
Thread Starter
iTrader: (2)
Join Date: Jun 2009
Location: Knoxville TN
Posts: 365
Thats right baby! Official shirts, aprons, high end cars mobile trailers, 10x15 tents to work under! thats how I roll! lol and all thanks to you getting my butt up off the couch and getting into REAL detailing! Does that mean I have to pay you? lol

  #9
Old 04-21-2010, 01:39 PM
qbmurderer13's Avatar
Touched by his noodly appendage
iTrader: (6)
Join Date: Oct 2008
Location: Orlando, FL
Posts: 2,373
Yup. 20% of all your profit...

  #10
Old 04-21-2010, 08:05 PM
Fallen_Rock's Avatar
Member
Thread Starter
iTrader: (2)
Join Date: Jun 2009
Location: Knoxville TN
Posts: 365
Originally Posted by qbmurderer13
Yup. 20% of all your profit...
DANG!!! your worse then Obama!!

  #11
Old 04-22-2010, 05:36 PM
MNfit's Avatar
Super Moderator
iTrader: (8)
Join Date: Oct 2007
Location: Minnesota
Posts: 3,380
damn that it quit a difference. My car is in despret need of a detailing like that, lol

  #12
Old 04-27-2010, 03:23 AM
AnlDyxp_GD3's Avatar
Member
5 Year Member
iTrader: (6)
Join Date: Oct 2008
Location: W. LA, CA
Posts: 1,797
sheeeeet! You are a master!
