D.I.Y^o^ Vertically @ rear wiper for GD ( Fit & Jazz )

Name:  01jaz.jpg
Views: 679
Size:  54.1 KB



now you see the bolt, remove it with 10mm shock
1)
then just remove your wiper n you should see like this
2)

3)

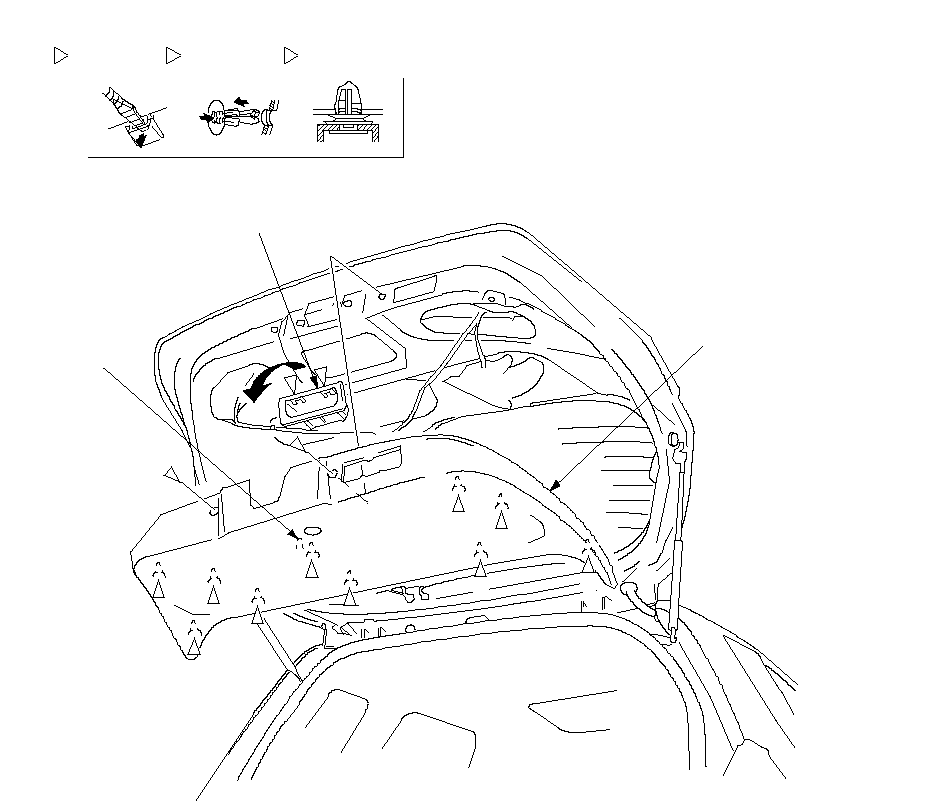

now we remove the parts that are ataching the black plastic cover

then remove this 2 pins

then after you pull of the black cover you should see your wiper dinamo,
remove the three bolt n
the wire cable holding the wiper compartment on our car
4)
now we already remove the dimano there's 4 bolt holding this cover
5)
now this is what you should see,
there should be a plastic pin on the red arrow,
mine don't have because mine is already being break off...
6)
then remove the metal bar
and move the small metal
which i pointed with arrow from left to right


7)
you should get this result
& now we put back the metal bar
after that install back everything
