** 9UP GD3 Heart Transplant (build thread) **

i think its time to make another thread about the build progress of my GD3 + K swap, because i feel that the old thread with 50+ pages was just too big and too broad and outdated !....

Special thx to Evolution Auto Sound & Performance

Yes....my plates say 9UP
and it's going for heart surgery...
will post more when we cut him open
please stay tune...!


Name:  4940348891_08c0f17353_b.jpg
Views: 5138
Size:  124.1 KB
Name:  4940939684_9b3b845748_b.jpg
Views: 5325
Size:  176.1 KB

Special thx to Evolution Auto Sound & Performance



Current mods:
-Full front and rear JDM conversion w/Noblesse Lux body kit
-Custom fenders done by save on auto body + painted root beer brown
-Custom air ride suspension done by BPG Tuning
-Custom hardwood flooring trunk box done by BPG Tuning
-Custom Air-Brush wood grains on all interior panels done by brinkworth Custom
currently car weights 2900lbs & runs 17.17" 1/4 mile

THE PLAN
Think out side the box ~! my car is AT, the whole chassis is different then MT, all the swap parts on the market now are made for MT fit so most of my swap parts will need to be custom made, like tranny mount, and all the wiring harness. i am not keeping the stock cluster and will be going with RacePak IQ3, we believe it will save us alot of time in turning everything from AT to MT because everything is different. also will be getting the Hybird Racing Universal swap harness to mate with the OEM one. Hasport told me because i have AT...its impossible to do K swap....as again, nothing is impossible !

Engine Spec (as of Jan29)
-K20A short block - M-tech Mugen to balance and blue print
-Spoon thermalstat
-J's racing thermal switch
-S2000 modified oil pump
-Toda A2 cams, and valve train
-Excedy carbon clutch
-Spoon LSD
-ATS 4.7 final drive
-Spoon Throttle body 70mm
-K20A ported intake manifold
-R-crew Intake sump
-Toda head gasket

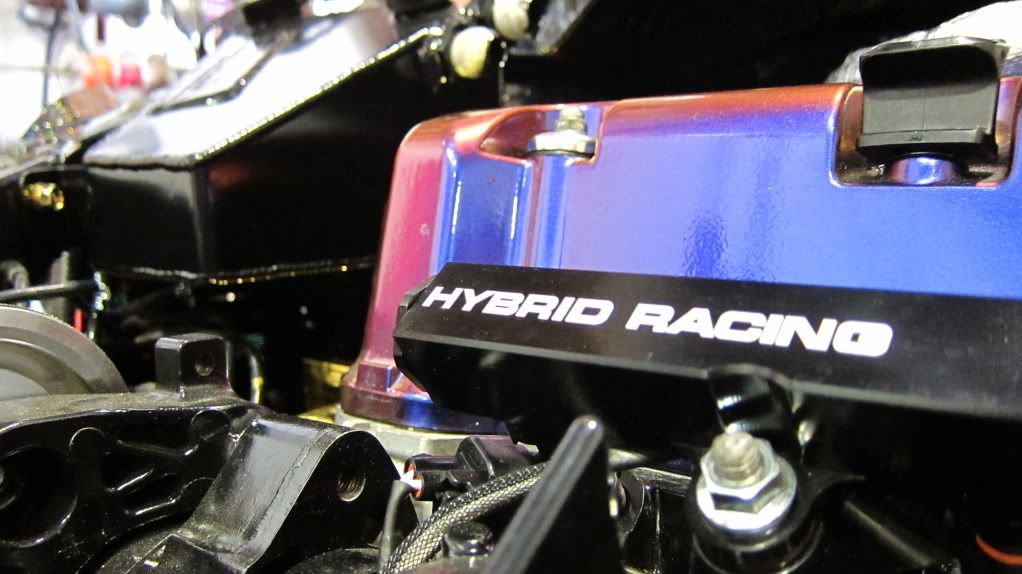

-Hybird Racing Tucked fuel rail
-Hybird Racing Universal conversion harness
-EP3 cable gas pedal, brake pedals, and custom clutch pedal
-RSX Shifter box custom fitted to chassis + P-spec shifter
-Evolution Performace Custom turbo exhaust manifold (sidewinder)
-Evolution Performace Custom oil catched tank
-Evolution Performace Custom exhaust 2.5
-Evolution Performace Custom intercooler ducting
-Evolution Performace Custom rad support
-Evolution Performace Custom breather outlet
-Garrett T3/T4 hybird turbo
-RC550cc injectors
-all black fuel lines and fittings
-AEM FPR
-Garrett intercooler core build by evolution auto performance
-K-tuned thermalstat
-K-tuned upper coolant hosing
-K-tuned belt tensioner
-Walbro 255L fuel pump
-Hybrid-racing shift cable housing
-Forged racing radiator

...............
Step 1 - Engine out, n some of the swap parts
https://www.fitfreak.net/forums/920366-post2.html


Step 2 - Engine Test Fitted, all hole cut to make room for engine, rad support cut to be ready for custom tube frame, clutch pedal, brakes, custom RSX Shifter installed and DBW deleted !
https://www.fitfreak.net/forums/924030-post22.html

Step 3- Turbo Manifold part 1 !
https://www.fitfreak.net/forums/929834-post44.html

Step 4 - Turbo Manifold part 2 !
https://www.fitfreak.net/forums/934152-post84.html

Step 5 - Turbo Manifold part 3 !
https://www.fitfreak.net/forums/935197-post92.html

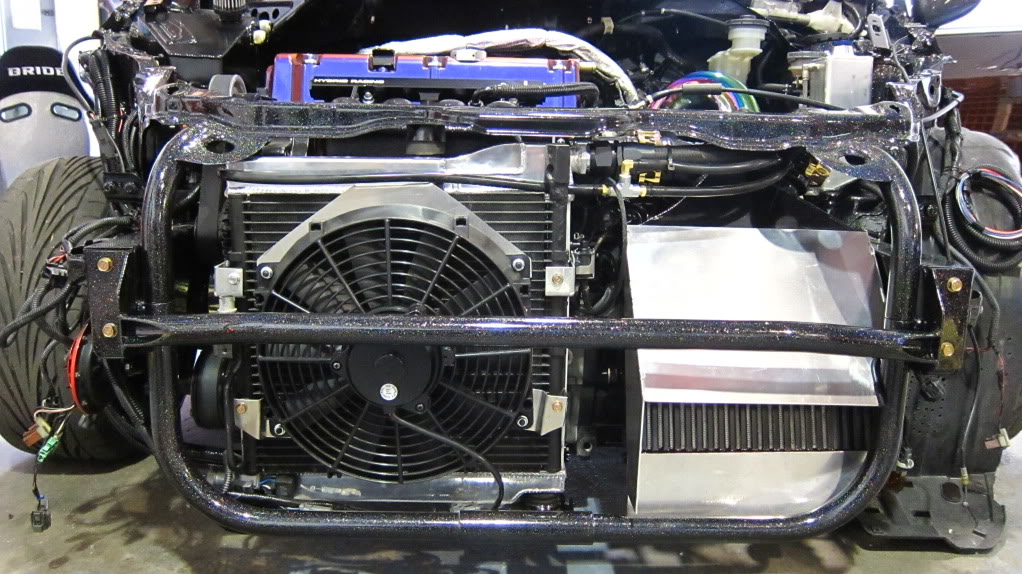

Step 6 - Tubed frame rad support and Re-bar
https://www.fitfreak.net/forums/936676-post111.html

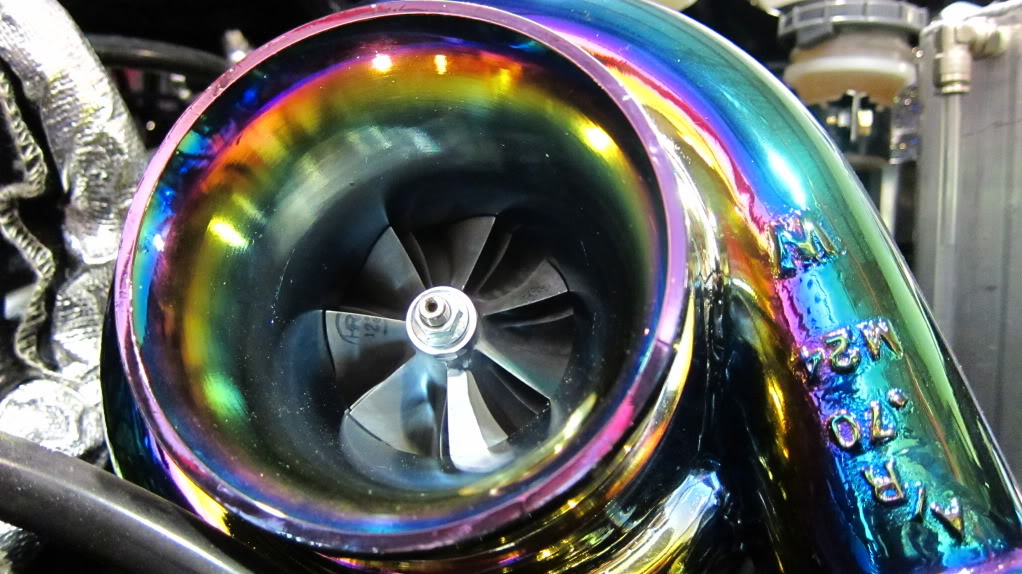

Step 7 - Details of the turbo
https://www.fitfreak.net/forums/937990-post125.html

Step 8 - More details on the removable tubed frame rad support
https://www.fitfreak.net/forums/938473-post130.html

Step 9 - More PArts collected
https://www.fitfreak.net/forums/941473-post132.html

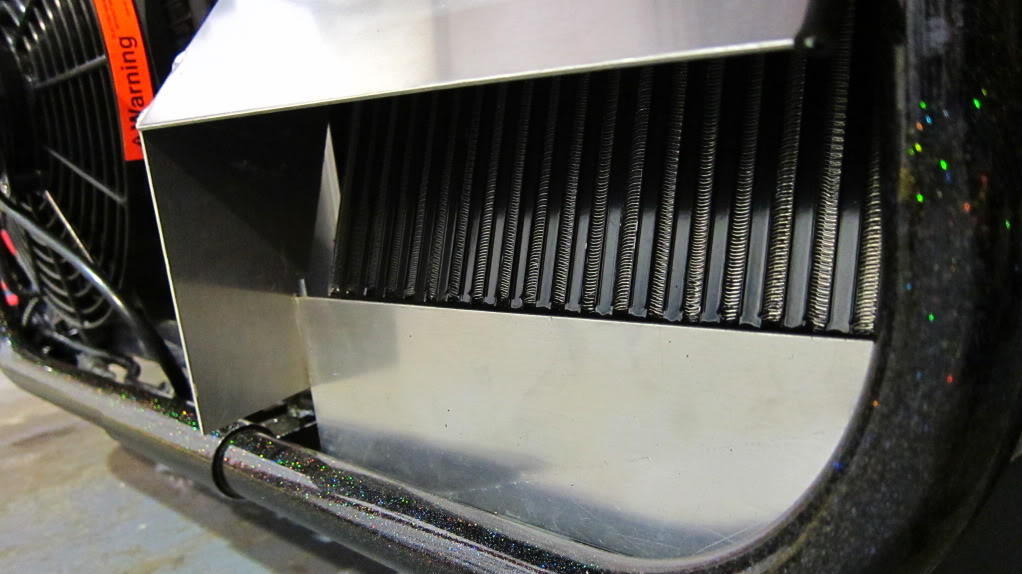

Step 10 - Intercooler, IC Ducting, Rad, AC Condensor, Catch Can, Valve Cover
https://www.fitfreak.net/forums/945744-post147.html

Step 11 - Gold plating and Powder coating done
https://www.fitfreak.net/forums/956551-post159.html

Step 12 - Attention to details
https://www.fitfreak.net/forums/957362-post167.html

Step 13 - Racepak iq3 + ATS 9" carbon clutch
https://www.fitfreak.net/forums/957404-post170.html

Step 14 - Feb 12 Small update on putting things together
https://www.fitfreak.net/forums/960875-post177.html

Step 15 - engine bay prep for paint
https://www.fitfreak.net/forums/962665-post179.html

Step 16 - preview of engine bay paint *house of kolor*
https://www.fitfreak.net/forums/967803-post194.html

Step 16.5 - engine bay paint work done by bcautosalon.com
https://www.fitfreak.net/forums/968989-post204.html

Step 17 - Engine in..more parts installed...Some wires done..almost ~!
https://www.fitfreak.net/forums/977366-post211.html

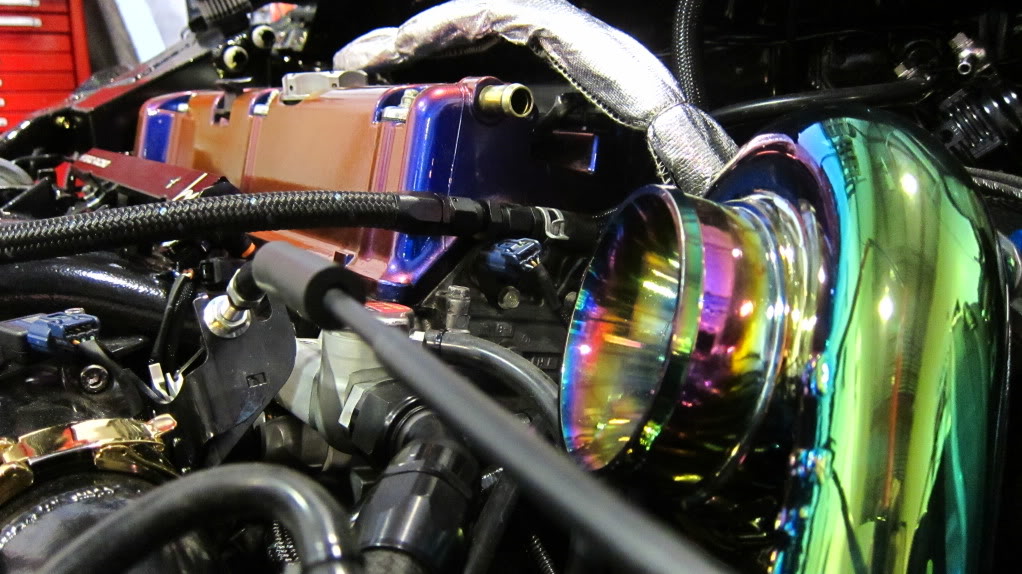

Step 18 - neo chrome
https://www.fitfreak.net/forums/992860-post256.html

Step 19 - engine bay almost done
https://www.fitfreak.net/forums/1000762-post260.html

Step 20 - engine started, un tuned, engine bay 99% done
https://www.fitfreak.net/forums/1003825-post270.html

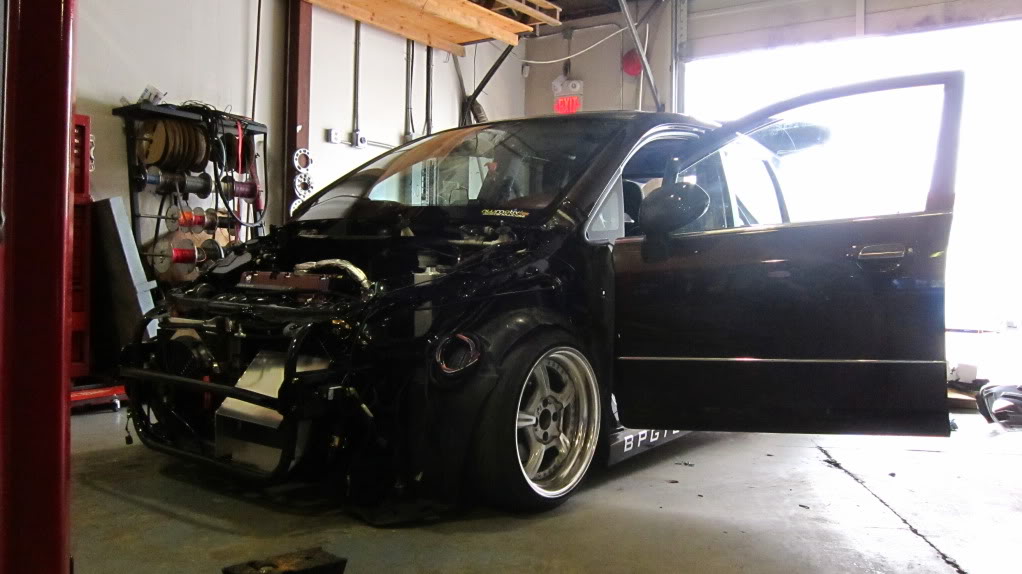

Step 22 - Tuning @ evolution auto performance in maple ridge
https://www.fitfreak.net/forums/1006597-post288.html

Step 21 - First day tuning @ Evolution Auto Performace
https://www.fitfreak.net/forums/1005680-post279.html


Last edited by FELIXY69; 06-24-2011 at 07:54 AM.
  #2
Old 10-10-2010 | 03:48 PM
FELIXY69's Avatar
Thread Starter
|
Member
5 Year Member
iTrader: (6)
Joined: Jun 2007
Posts: 2,790
From: RICHMOND BC CANADA
Oct 7 2010 - Motor out, all the automatic related parts are removed, some holes drilled and no turning back now
Name:  IMG_2603.jpg
Views: 3645
Size:  168.2 KB
Name:  IMG_2606.jpg
Views: 3705
Size:  135.6 KB
electric power steering
Name:  IMG_2614.jpg
Views: 3986
Size:  133.8 KB
Name:  IMG_2592.jpg
Views: 3556
Size:  156.8 KB


some of the parts i got at the moment
M-Tech "Race" Shifter Spring
Name:  IMG_2672.jpg
Views: 3546
Size:  71.4 KB

The best shifter ever, P-Spec shifter
Name:  IMG_2665.jpg
Views: 3490
Size:  109.5 KB

Woodie
Name:  IMG_2667.jpg
Views: 3491
Size:  94.4 KB

My Motor
K20A
Name:  IMG_2642.jpg
Views: 3559
Size:  104.6 KB

Hasport Drive shaft
Name:  IMG_1853.jpg
Views: 3509
Size:  79.3 KB


Last edited by FELIXY69; 10-10-2010 at 04:01 PM.
  #3
Old 10-10-2010 | 04:18 PM
j1nNju1c3's Avatar
Member
iTrader: (2)
Joined: Aug 2009
Posts: 1,497
From: San Diego CA
5 Year Member
subscribed!!

  #4
Old 10-10-2010 | 05:48 PM
DreaMv's Avatar
Member
iTrader: (1)
Joined: Sep 2009
Posts: 1,632
From: California, 562
5 Year Member
keep us updated!

subscribed

  #5
Old 10-10-2010 | 05:56 PM
R@ymun2's Avatar
Member
Joined: Jun 2008
Posts: 570
From: Miami, FL
Subscribed... And doesn't hasport know that u have like an infinite amount of money to do this also lol

  #6
Old 10-10-2010 | 06:02 PM
zer0sk8ordie's Avatar
Member
5 Year Member
iTrader: (7)
Joined: Aug 2007
Posts: 452
From: Riverside, CA
That 17.17 1/4 is that with the turbo??

  #7
Old 10-10-2010 | 06:04 PM
Fit4Trav's Avatar
Member
5 Year Member
iTrader: (2)
Joined: Mar 2008
Posts: 3,860
From: Chino, Ca
In for the win

  #8
Old 10-10-2010 | 08:29 PM
vinn's Avatar
Member
iTrader: (3)
Joined: Aug 2008
Posts: 2,109
From: SoCaL
5 Year Member
engine bay so dirtyyy

  #9
Old 10-10-2010 | 08:39 PM
gawa's Avatar
Member
iTrader: (6)
Joined: Oct 2007
Posts: 814
From: Toronto
5 Year Member
looking forward to this.

  #10
Old 10-11-2010 | 12:53 AM
FELIXY69's Avatar
Thread Starter
|
Member
5 Year Member
iTrader: (6)
Joined: Jun 2007
Posts: 2,790
From: RICHMOND BC CANADA
Originally Posted by zer0sk8ordie
That 17.17 1/4 is that with the turbo??
yeah man !!!
So proud ! Slowest car of day at the track

  #11
Old 10-11-2010 | 12:55 AM
FELIXY69's Avatar
Thread Starter
|
Member
5 Year Member
iTrader: (6)
Joined: Jun 2007
Posts: 2,790
From: RICHMOND BC CANADA
Originally Posted by vinn
engine bay so dirtyyy
Duh! Its all taken apart

  #12
Old 10-11-2010 | 12:58 AM
FELIXY69's Avatar
Thread Starter
|
Member
5 Year Member
iTrader: (6)
Joined: Jun 2007
Posts: 2,790
From: RICHMOND BC CANADA
Originally Posted by R@ymun2
Subscribed... And doesn't hasport know that u have like an infinite amount of money to do this also lol
They dunno cuz I don't have infinite money ... But I have infinite amount of passion !!

  #13
Old 10-13-2010 | 12:17 AM
Slowbros's Avatar
Member
Joined: Sep 2010
Posts: 216
From: California
intriguing thread is intriguing

  #14
Old 10-13-2010 | 01:10 AM
asiann1nja's Avatar
Member
5 Year Member
Joined: Mar 2009
Posts: 23
From: Frisco, Texas
looking forward to see the finish product

  #15
Old 10-13-2010 | 01:28 AM
Ciggy's Avatar
Member
iTrader: (6)
Joined: Apr 2007
Posts: 1,867
From: New Jersey
5 Year Member
subscribed

  #16
Old 10-13-2010 | 01:29 AM
OneStopCustoms's Avatar
Member
5 Year Member
iTrader: (15)
Joined: Jan 2006
Posts: 780
From: L.A., CA
Gangstar!!!

  #17
Old 10-13-2010 | 03:51 AM
R@ymun2's Avatar
Member
Joined: Jun 2008
Posts: 570
From: Miami, FL
Ok so u dont have infinite amount of monies, but by far you have the deepest pockets on FF.net lol, can't wait till this is done.

  #18
Old 10-13-2010 | 07:52 AM
Black3sr's Avatar
Member
iTrader: (3)
Joined: Jul 2009
Posts: 4,250
From: Kitchener,Ont Canada
5 Year Member
^^^ I wonder where we send donations?

Personally, I would cover up those fenders before they get beat too much.

  #19
Old 10-14-2010 | 05:10 PM
R@ymun2's Avatar
Member
Joined: Jun 2008
Posts: 570
From: Miami, FL
Felix did u trade with the guy for his k20 and turbo??

  #20
Old 10-14-2010 | 05:51 PM
ecl's Avatar
ecl
Member
Joined: Feb 2010
Posts: 116
From: LOS ANGELES
5 Year Member
This is pretty wild..Looks fun!
